CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-20 work days
Brand:
carterberg
Product Description
CB-10M Series Hydraulic Quick Couplings - ISO 7241-A Compliant & Leak-Proof for Industrial Use
1.The CB-10M Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment, hydraulic machinery and oil equipment and otherrequired hydraulic applications.
2.Poppet valves are available to prevent uncoupledleakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. H007 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series ,FASTER ANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.
3. Critical parts are hardened for durability.
4. H007 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series ,FASTER ANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Technical Specifications
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 4000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 | ||
| 1-1/4" | 3000 | 88 | ||
| 1-1/2" | 2000 | 220 | ||
| 2" | 2000 | 224 |
Dimensional Overview

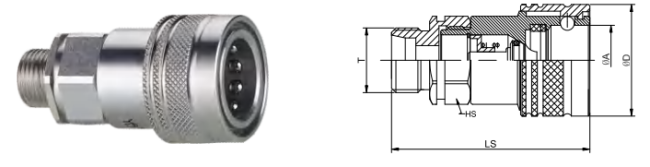

Female (Socket)
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2S-10M | 53.5 | 26 | 22 | 13.1 | G1/4 NPT1/4 |
| 3/8" | CB-S3S-10M | 57.5 | 31.5 | 27 | 18.5 | G3/8 NPT3/8 |
| 1/2" | CB-S4S-10M | 66.5 | 38 | 27 | 23.8 | G1/2 NPT1/2 |
| 3/4" | CB-S6S-10M | 81.5 | 46 | 36 | 30.6 | G3/4 NPT3/4 |
| 1" | CB-S8S-10M | 96 | 54 | 41 | 36.7 | G1 NPT1 |

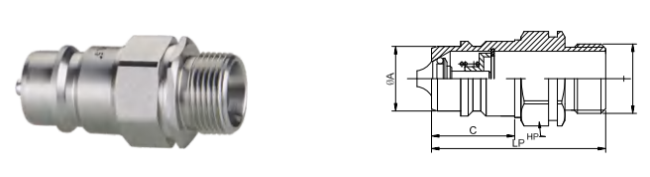

Male (Plug)
| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2S-10M | 46 | 15 | 19 | 11.85 | G1/4 NPT1/4 |
| 3/8" | CB-P3S-10M | 53 | 21.5 | 22 | 17.3 | G3/8 NPT3/8 |
| 1/2" | CB-P4S-10M | 58 | 26.5 | 27 | 20.55 | G1/2 NPT1/2 |
| 3/4" | CB-P6S-10M | 66 | 28 | 34 | 29.1 | G3/4 NPT3/4 |
| 1" | CB-P8S-10M | 79 | 35 | 41 | 34.3 | G1 NPT1 |
