Clear Windshields Glass PVB Interlayer Film 0.76mm Thickness
Clear Windshields Glass Interlayer PVB Film 0.76mm Thickness
DESCRIPTION:
PVB film is polymer material made of PVB resin and plasticizer through by molding of plasticizing.
Due to its excellent transparency, heat resisting and elasticity, our PVB film is widely used for Architectural laminated glass, and Automotive windshield glass.
TECHNICAL DATE SHEET:
| Items | Specification |
| Thickness | 0.76 |
| Length | 200 |
| Width | 600-3300 |
| Band Width | 120-460 |
| Color | Blue band/Green band/Grey band/ G-green |
| Roughness Rz | 15-70 |
| Moisture content | 0.35-0.55 |
| Heat shrinkage rate (60℃/ 15nin)(％) | ≦8.0 |
| Punnel value | 4-7 |
| Visible light transmittance(％) | ≧85 |
| Haze(％) | <0.6 |
| Tensile strength(MPa) | ≧20.0 |
| Tensile elongation(％) | ≧200 |
| Yellowness index(％) | ≦10 |
PACKAGE AND STORAGE:

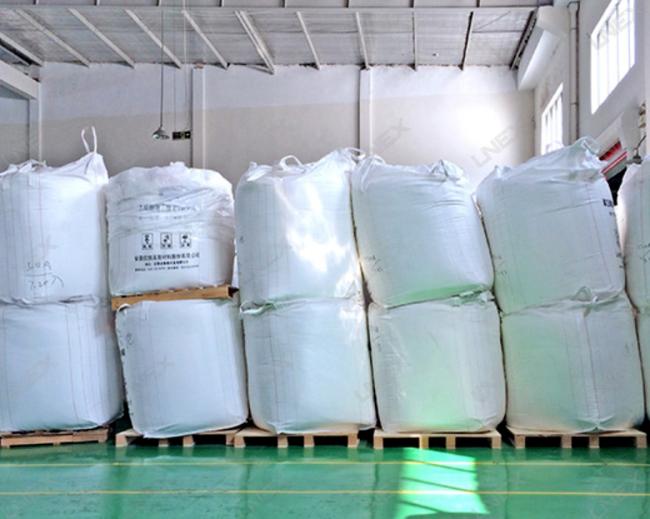

1. The PVB film is insulated with PE film, cased into an aluminum foil bag, then cacuum sealed , and lastly into plywood box or fiber can.There should be quality in the package.
2. Transportatiom: there should be no direct sunlight, drench, and violent shaking during the transportation.
3.Storage: the product should be stocked in clear warehouse and normal temperature. it is forbidden to leave it under direct sunlight. As for the broken or opened package, they should be under temperature betweeen 5℃ and 10℃ for cold storage.
=
