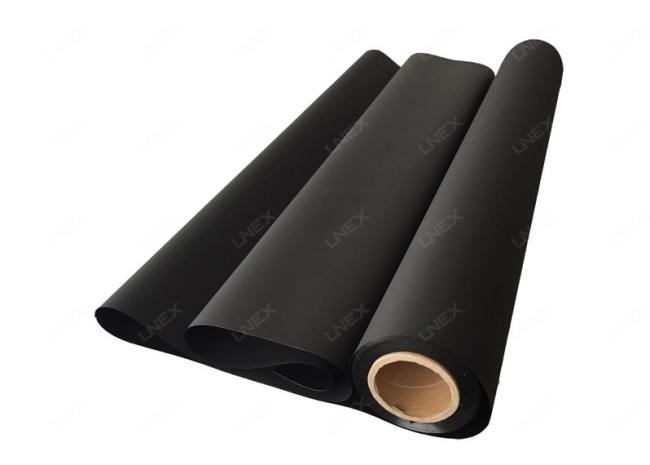

Black 0.38mm Indoor/Outdoor EVA Film For Glass Lamination Soft
Black 0.38mm Indoor/Outdoor EVA Film For Glass Lamination Soft
Laminating instructions:
1. Prepare and cut the EVA film into right size according to the following structure:glass+EVA film + glass
2. Put the overlapped glass into silicon bag and seal silicon bag well.
3. Activate vacuum pump for 5-8min till vacuum value reach -0.095Mpa to double checking the vacuum is good.
4 Set up the laminating temp. and time and start heating.The following data based on 5mm glass +0.40mm EVA +5mm glass.
| Heating speed | Temp. And holding time | Vacuum value | ||
| First section | 2°C/ min | 60℃ | 25mins | -0.095MPA |
| Second section | 2°C/ min | 80°C | 30mins | -0.095MPA |
| Third section | 2°C/ min | 130°C | 45mins | -0.04MPA |
Remark: The above curves only for reference, the user should do some adjusts according to the process surroudings(temperature and humidity), glass area, glass thicknes,glass type and the machine itself.
