95L 120mm Threaded Straight Shank Stainless Steel Drill Bit For Glass Self Sharpen
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
Negotiable
Brand:
UNEX
Product Description

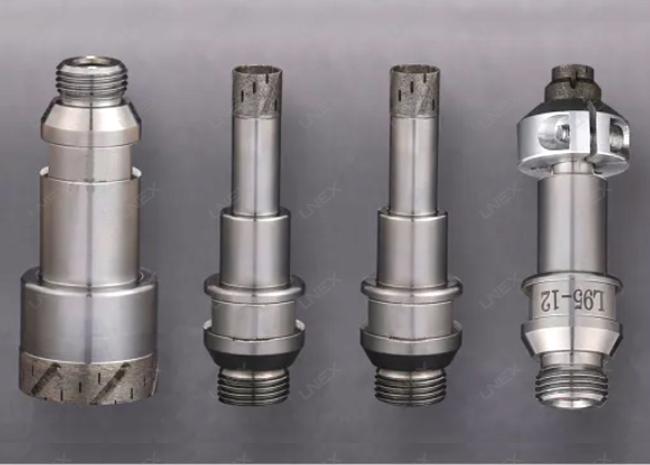

New Type Threaded Shank Stainless Steel Drill Bit For Glass
DESCRIPTION:
Our glass diamond core drill bits are designed to cut through glass, tile with ease. Made of high carbon steel with industrial grade carbide tip for long life and efficient drilling.
Specifications
|
Drill diameter (mm) |
Glass thickness (mm) | Feeding Speed per second(mm/s) |
Glass thickness (mm) | Feeding Speed per second(mm/s) |
Optimal speed(rpm) |
| Φ4-8 | 3-5mm | 0.8-2mm | 5-19mm | 1.2-2.5 | 3500-4500 |
| Φ9-30 | 3-5mm | 0.8-2mm | 5-19mm | 1.2-2.5 | 3500-4200 |
| Φ31-50 | 3-5mm | 0.8-1.5mm | 5-19mm | 1.0-2.0 | 3200-3500 |
| Φ51-70 | 3-5mm | 0.8-1.2mm | 5-19mm | 1.0-1.5 | 2800-3000 |
| Φ71-100 | 3-5mm | 0.8-1mm | 5-19mm | 1.0-1.2 | 2000-2800 |
| Remarks: dirll bits diameterΦ70mm, the minimum speed be not less than 2800rpm | |||||
