750W AC Refrigerant Recovery Machine HW-980 R134a Machine Portable

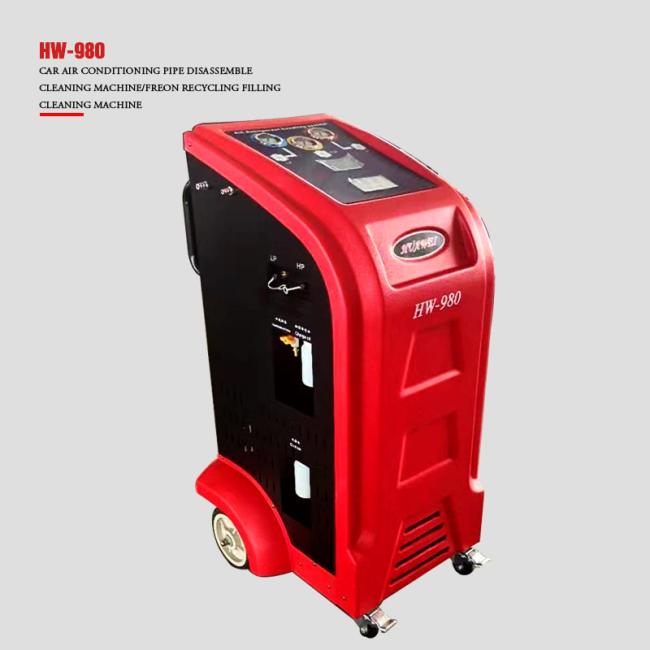

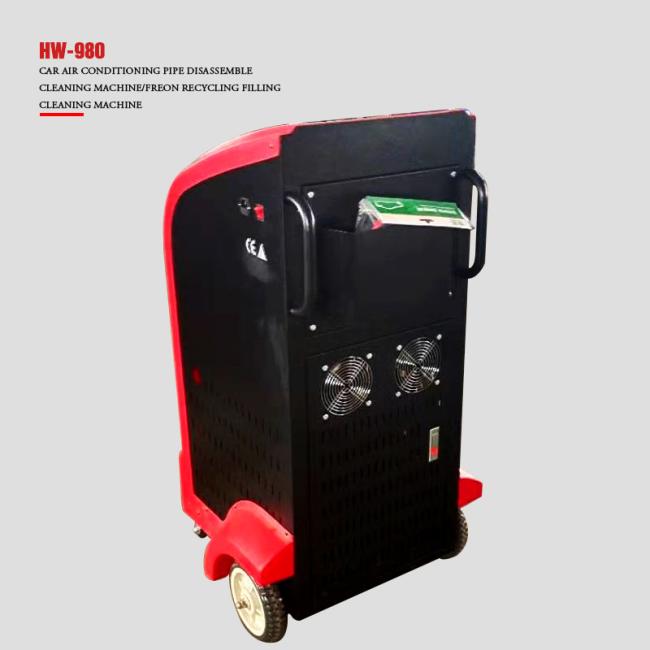

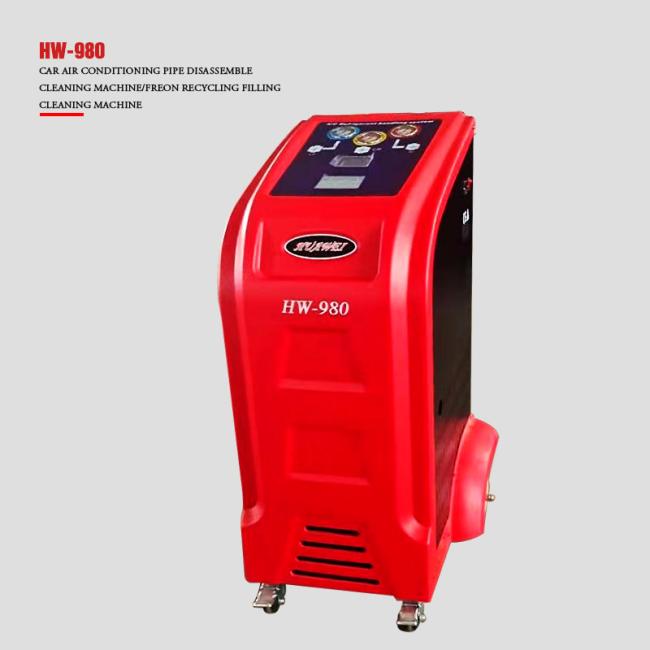

HW-980 Full Automatically Operation Refrigerant Recovery Machine
Product advantage:
- Recovery, vacuum, charge;
- Fully automatically operation;
- Drain compressor oil automatically;
- Every operation detail can be displayed on big LCD;
- Operation & service prompt;
- High/low pressure protection;
- Bigger cylinder for R134a refrigerant;
- Incondensable gas purge automatically;
- With fan & condenser;
| Input power | 750W |
| Recovery ability | 450g/min |
| Charge ability | 1000g/min |
| Vacuum ability | 5.4m3/h |
| Cylinder capacity | 15kg |
| Net weight | 70kg |
| Dimension ( L*W*H,mm) | 1240*740*640 |
Safety caution
With Gloves and protective goggles to protect the skin and eyes
Do not use the machine near the fire or spark
Don’t sun and rain the machine
Avoid to touch corrosive liquids and gases
Keep good air circulation
Notes
1. Reading guide carefully before using the machine
2. Checking the refrigerant model before operation,only use R407a
3. In order to prevent the occurrence of serious accidents caused by high pressure,recycle /refill the R407a not more than 8KG
4. Do not rotate,automatic radiator(eg:electric fan),heating installation pipe nearly.
5. Check the height of the vacuum pump oil before use.
6. Recycling not more than 10 times an hour,otherwise it will cause damage to the compressor.
7. Far from children when operating.
8. Only the professional technical person can operate.
9. With the manufacturer’s approval, do not disassemble.
10. Don’t turn the machine upside down.
11. If the refrigerant in the work bottle is less than 1kg, the charging pressure will not work.
