Acrel Agf-M Solar Dc String Monitoring Device Rs485 Max Isolation Measuring Dc 20a Max Voltage Measuring For Busbar Dc1.5kv

Price Negotiable
Price: 174 USD/unit
MOQ: 1
Delivery Time: 7 work days
Brand: Acrel
Product Description

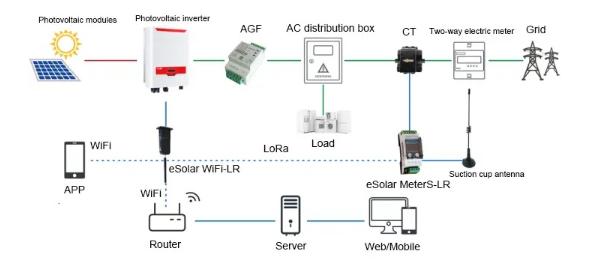

AGF-M Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.

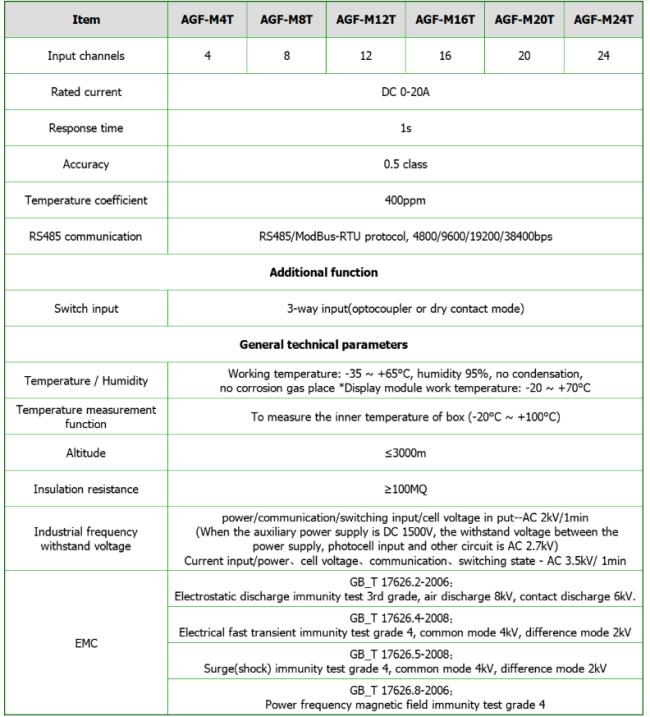

Basic specifications and main technical parameters

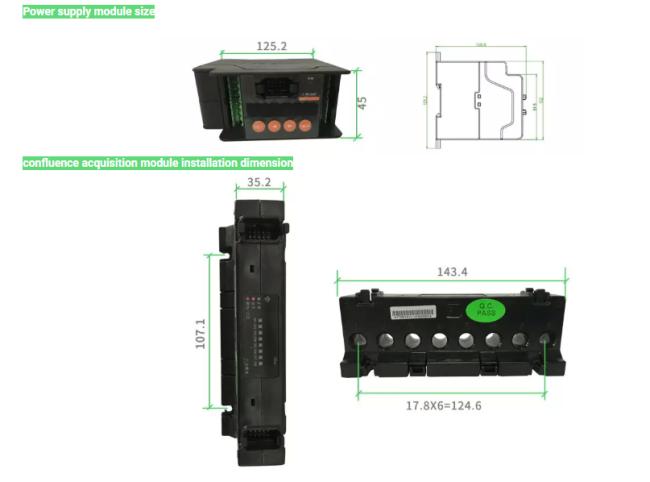

Dimension

Installation





Structure
