Excavator Hyundai R210-7 R215-7 R220-5 R225-7 Main Pump For K3V112DT-9C32-12T Hydraulic Spare Parts
Excavator Hyundai R210-7 R215-7 R220-5 R225-7 main pump for K3V112DT-9C32-12T hydraulic spare parts
Belparts (GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED), is a foreign trade company integrating development, sales, procurement, warehousing, transportation and service. Founded in September 2013, we have more than twelve years of experience in machinery trade.
Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 198 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.
Main Business Model
| DH50-7, DH55D, DH60-7, DH80, DH130, DH150, DH150W-9, DH215-5, DH200-5, DH150LC-7, DH215-7, DH220-5, DH220-7, DH220-9, DH220-10, DH225-9, DH258, DH258LC-7, DH280, DH290B, DH300-5, DH300-7, DH320, DH360, DH370, DH500, DX300 |
| R60-7, R80, R130, R140, R150-7, R150-9, R1107-7, R160-7, R210, R220, R220-7, R215-7, R220-5, R225-7, R225-9T, R225lc-7, R290, R350-7,R110-9, R215-9, R275LC-9, R305, R305-7, R320, R335-7,R360, R370, R375, R375-7H, R455, R460, R485-7 |
| EC130, EC140B, EC210B, EC210C, EC235C, EC240B, EC290, EC290B, EC290C, EC360B, EC460B, EC460C, EC480D |
| E305, E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B |
| PC35,PC40,PC45, PC50, PC55, PC60,PC60-6, PC70, PC75, PC78, PC80, PC90, PC100, PC110, PC120, PC120-7, PC130, PC150, PC160, PC180, PC200,PC200-6, PC200-7,PC200-8, PC210-8, PC220-6,PC220-7,PC210, PC220, PC230, PC240,PC240-8, PC270, PC300, PC360,PC360-7, PC350, PC400, PC450, PC650, PC750, PC1250 D31, D50, D65, D85, D155, D275, D375, D475 |
| EX200-2, EX220-2, EX120-5, EX200-5, EX220-5, EX400-5, ZX200-3, ZX210-3, ZX240-3, ZX270-3, ZX330-3, ZX360-3, ZX110, ZX120, ZX200-6,ZX200-3G,ZX200-5G,ZX330-3G,ZX350-5G |
| SK200-3, SK200-5, SK135rs, SK70rs,SK60,SK120-5, SK200-8, SK250-8, SK260-8, SK130-8, SK200-6e, SK210-6e, SK160 |
| HD80R, HD820-5, HD1023, HD1430, HD700-7,HD1430-7, HD1250-7, HD450-7 |
| SH120A2/A3,SH130, SH200A2/A3, SH210A5, SH240A3, SH360A5 |
| KX155, KX135, KX161-3 |

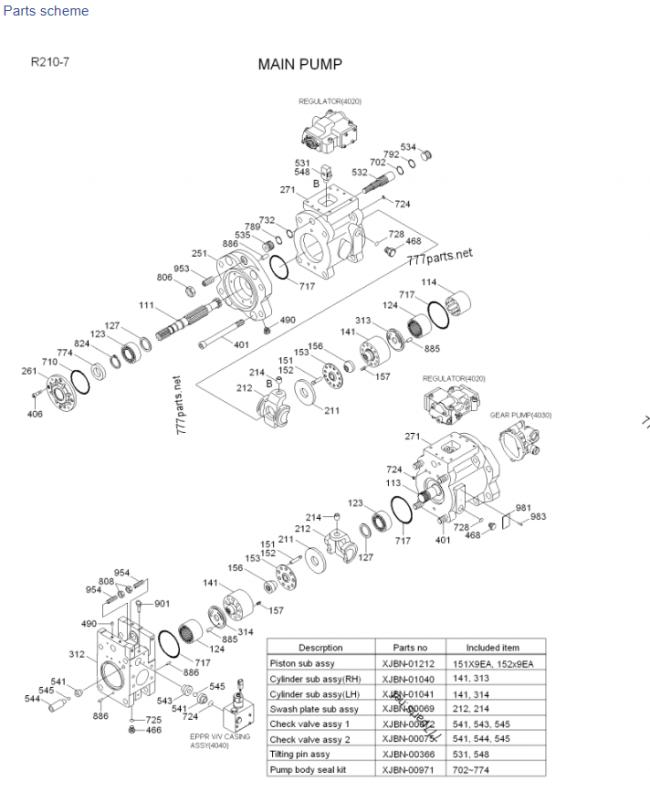

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N6-10090 | MAIN PUMP ASSY | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00077 | DRIVE SHAFT(F) | 1 | |
| 113 | XJBN-00078 | DRIVE SHAFT(R) | 1 | |
| 114 | XJBN-00351 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00950 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00786 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00081 | SPACER-BEARING | 4 | |
| S141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-01032 | PISTON | 18 | |
| S152 | XJBN-01214 | SHOE | 18 | |
| 153 | XJBN-00945 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| S212 | XJBN-00070 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | SUPPORT | 2 | |
| 261 | XJBN-00087 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-01034 | CASING-PUMP | 2 | |
| 312 | XJBN-00089 | BLOCK-VALVE | 1 | |
| S313 | XJBN-01035 | PLATE-VALVE(R) | 1 | |
| S314 | XJBN-01036 | PLATE-VALVE(L) | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 18 | |
| S531 | XJBN-00358 | PIN-TILTING | 2 | |
| 532 | XJBN-00955 | PISTON-SERVO | 2 | |
| 534 | XJBN-01037 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| S541 | XJBN-00859 | SEAT | 4 | |
| S543 | XJBN-00860 | STOPPER | 2 | |
| S544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | BALL-STEEL | 4 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00918 | O-RING | 2 | |
| 710 | XJBN-00095 | O-RING | 1 | |
| 717 | XJBN-00096 | O-RING | 4 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 4 | |
| 728 | XJBN-00363 | O-RING | 4 | |
| 732 | XJBN-00912 | O-RING | 2 | |
| 774 | XJBN-00962 | SEAL-OIL | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 792 | XJBN-00100 | BACK-UP RING | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 808 | XJBN-00364 | NUT | 2 | |
| 824 | XJBN-00102 | RING-SNAP | 2 | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00106 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
| 011 | XJBN-01212 | PISTON SUB ASSY | 2 | |
| 013 | XJBN-01040 | CYLINDER SUB ASSY-RH | 1 | |
| 014 | XJBN-01041 | CYLINDER SUB ASSY-LH | 1 | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY | 2 | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 | 2 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 | 2 | |
| 530 | XJBN-00366 | TILTING PIN ASSY | 2 |
performance parameter
Displacement: The volume of oil discharged by the pump shaft per revolution determines the working speed and force of the excavator.
Pressure: The pressure of the oil at the pump outlet determines the working capacity of the excavator.
Rotational speed: The rotational speed of the pump shaft affects the flow rate and lifespan of the pump.
Efficiency: The ratio of output power to input power of a pump, reflecting energy loss.
Maintenance
Regularly replace hydraulic oil and filter element to keep the oil clean.
Regularly check the noise, vibration, and temperature of the hydraulic pump, and promptly address any abnormalities found.
Avoid long-term overload work to prevent hydraulic pump overheating and damage.
development trend
High pressure and high flow rate: Improve the work efficiency and operational capacity of excavators.
Intelligence: Adopting electronic control technology to achieve precise control and energy management of hydraulic pumps.
Energy saving and environmental protection: Develop hydraulic pumps with low noise, low energy consumption, and low emissions.
FAQ:
- What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and trade assurance.
