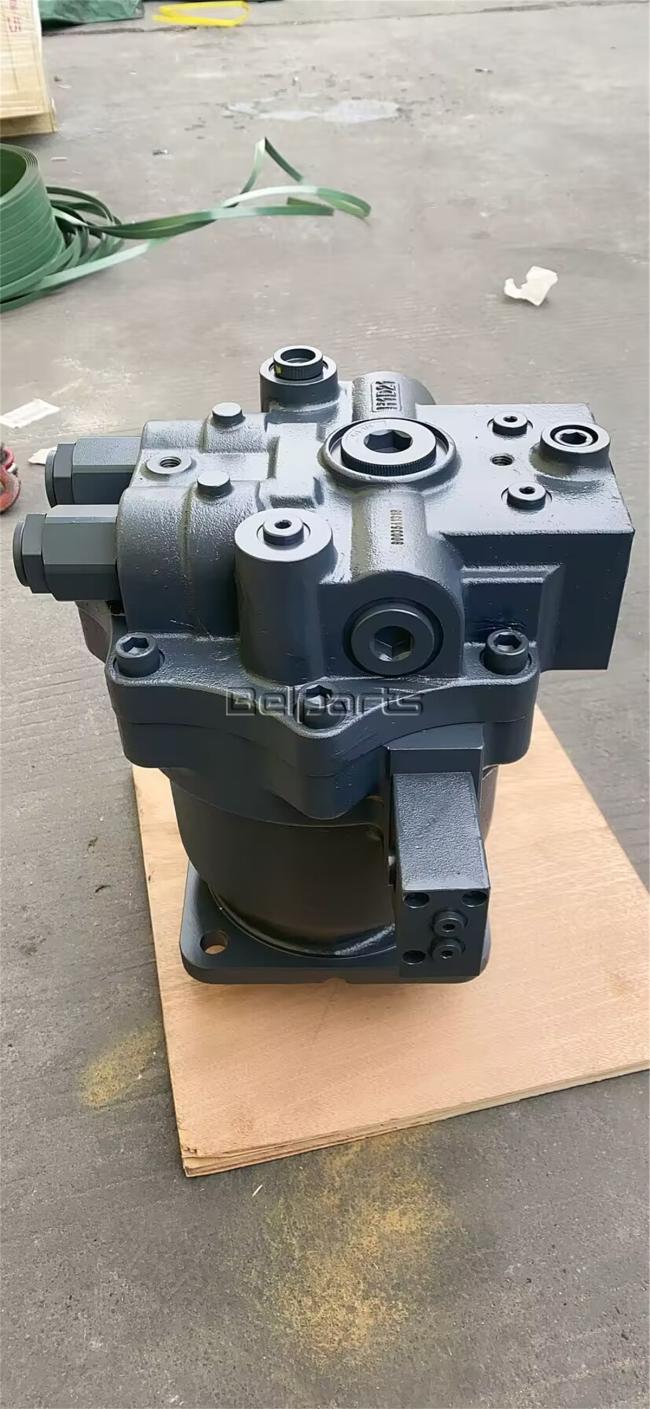

Belparts EC700CL Swing Motor 14535293 VOE14535293 for MFC250-032 Excavator 360 Rotation
Belparts Swing Motor EC700CL slewing motor 14535293 VOE14535293 for MFC250-032
Appliion:Excavator
Part name:swing motor
Material:Steel
Model:EC700CL
Part number:14535293 VOE14535293
Brand:Belparts
The excavator swing motor is the core component responsible for the machine's 360° rotation, converting hydraulic energy into precise mechanical motion. Our cutting-edge swing motor series combines decades of engineering expertise with advanced materials science to deliver unmatched performance in harsh working conditions.
Featuring a patented axial piston design with hardened steel components, our motors achieve 15% higher torque density than industry standards while maintaining 92% volumetric efficiency. The integrated anti-shock valve system minimizes pressure spikes during sudden stops, extending service life by up to 8,000 hours even in continuous mining operations.

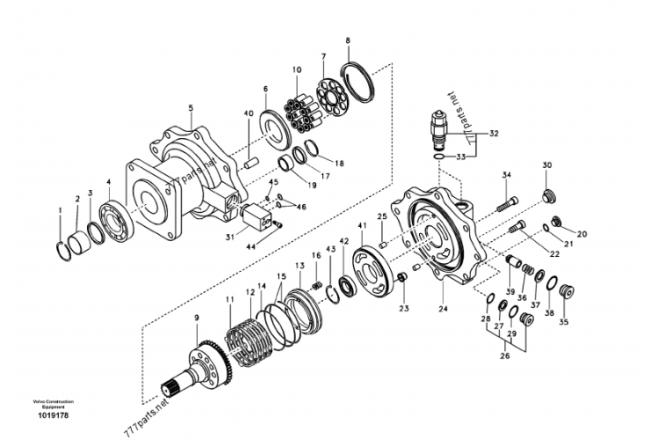

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 8279230 | ||||
| VOE 14535293 | Swing Motor | 1 | ||
| 1 | SA 8230-01090 | Ring | 1 | |
| 2 | SA 8230-04460 | Ring | 1 | |
| 3 | SA 8230-00910 | Seal | 1 | |
| 4 | SA 7177-03140 | Roller Bearing | 1 | |
| 5 | VOE 14512779 | Housing, Casing | 1 | |
| 6 | SA 8230-04390 | Plate | 1 | |
| 7 | SA 8230-04400 | Plate | 1 | |
| 8 | SA 8230-04300 | Spring | 1 | |
| 9 | SA 8230-04060 | Cylinder | 1 | |
| 10 | VOE 14512780 | Piston | 9 | |
| 11 | SA 8230-22940 | Plate | 4 | |
| 12 | SA 8230-22950 | Plate | 4 | |
| 13 | SA 8230-04090 | Piston | 1 | |
| 14 | SA 8230-00260 | O-ring | 1 | |
| 15 | SA 8230-00270 | O-ring | 2 | |
| 16 | SA 8230-04270 | Spring | 19 | |
| 17 | SA 8230-00901 | Seal ring | 4 | |
| 18 | SA 8230-04310 | Spring | 4 | |
| 19 | SA 8230-04350 | Spring | 4 | |
| 20 | SA 7273-10751 | Cap more | 2 | |
| 21 | SA 9511-12011 | O-ring more | 2 | |
| 22 | SA 8230-00630 | Bolt | 1 | |
| 23 | SA 8230-04120 | Piston | 2 | |
| 24 | VOE 14512781 | Cover | 1 | |
| 25 | SA 8230-00560 | Pin | 2 | |
| 26 | VOE 14508590 | Valve | 2 | |
| 27 | VOE 14539965 | Ring | 2 | |
| 28 | SA 9511-12012 | O-ring more | 2 | |
| 29 | SA 9511-12018 | O-ring more | 3 | |
| 30 | SA 8230-37030 | Cap | 1 | |
| 31 | SA 8230-04180 | Valve | 1 | |
| 32 | VOE 14535294 | Relief valve | 2 | |
| 33 | SA 9511-12031 | O-ring | 1 | |
| 34 | SA 8230-00600 | Bolt | 7 | |
| 35 | SA 8230-11610 | Cap | 2 | |
| 36 | SA 8230-12860 | Spring | 2 | |
| 37 | VOE 14880821 | Ring more | 2 | |
| 38 | SA 9511-12026 | O-ring more | 2 | |
| 39 | SA 8230-11110 | Check valve | 2 | |
| 40 | SA 9324-21317 | Pin | 1 | |
| 41 | SA 8230-04020 | Plate | 1 | |
| 42 | SA 8230-00840 | Needle Bearing | 1 | |
| 43 | SA 8230-01100 | Ring | 1 | |
| 44 | SA 8230-00610 | Bolt | 1 | |
| 45 | SA 8230-00160 | O-ring | 3 | |
| 46 | SA 8230-00190 | O-ring | 2 | |
| 100 | VOE 14535301 | Seal | 1 |
FAQ:
- What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and alibab trade assurance.
