Swing Motor with Reduction for CAT 349 349D Excavator 418-7155 470-0474 475-1175 475-1176 Rotary Reducer Assembly
Swing Motor For CAT 349 349D Excavator Spare Parts 418-7155 4187155 470-0474 475-1175 475-1176 4700474 4751175 4751176 Rotary Device Assembly
| Application | Excavator |
|---|---|
| Part name | Swing Motor |
| Machine model | CAT 349 349D |
| Part number | 418-7155 4187155 470-0474 475-1175 475-1176 4700474 4751175 4751176 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |

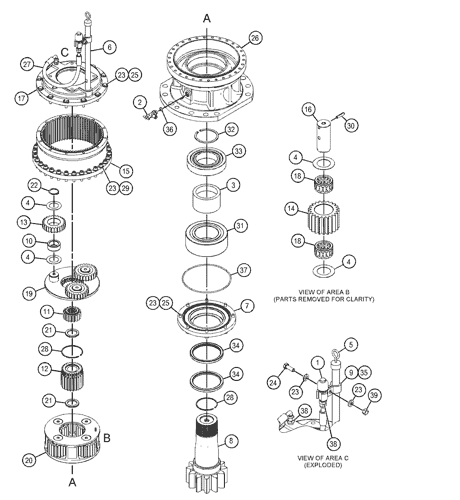

| Pos. | Part No. | Qty | Parts name |
|---|---|---|---|
| 1. | 411-6112 | [1] | BREATHER(SWING DRIVE) |
| 2. | 69-7238 | [1] | VALVE,SP-OVER |
| 3. | 274-8897 | [1] | SPACER(SPECIAL) |
| 4. | 994-6611 | [1] | WASHER(SET,37X51X8M THK) |
| 5. | 1134-1398 | [1] | GASKET,OIL LEVEL(SWING DRIVE) |
| 6. | 114-1399 | [1] | PIPE,GAUGE |
| 7. | 114-1400 | [1] | CAGE |
| 8. | 227-6178 | [1] | SHAFT,PINION |
| 9. | 227-6175 | [1] | BOSSES(1/4-1/2-INCH) |
| 10. | 256-6288 | [3] | BEARING,AS-ROLLER |
| 11. | 418-7168 | [1] | GEAR,SUN(13 TEETH,18 THICK) |
| 12. | 619-7167 | [1] | GEAR,SUN(23 TEETH) |
| 13. | 418-7169 | [1] | GEAR,PLANETARY(22 TEETH) |
| 14. | 227-6285 | [3] | GEAR,PLANETARY(22 TEETH) |
| 15. | 418-7168 | [1] | GEAR,RING(69 TEETH) |
| 16. | 418-7167 | [1] | SHAFT |
| 17. | 418-7208 | [1] | COVER,HOUSING |
| 18. | 418-7209 | [1] | BEARING,AS-ROLLER |
| 19. | 418-7224 | [1] | CARRIER,AS |
| 20. | 418-7226 | [1] | CARRIER,PLANETARY |
| 21. | 422-8125 | [2] | SPACER,RING,69.54MM THK |
| 22. | 423-4554 | [1] | RING,RETAINING |
| 23. | 631-7207 | [3] | WASHER,HARD(13.52X53X6MM THK) |
| 24. | 4133-5440 M | [1] | BOLT(M12X1,75X35,25MM) |
| 25. | 423-4557 M | [2] | BOLT(M12X1,75X45,25MM) |
| 26. | 496-6764 | [1] | HOUSING |
| 27. | 446-7695 | [1] | HOSE,AS |
| 28. | 631-7130 | [1] | RING,RETAINING |
| 29. | 09110-7151 M | [3] | BOLT(M12X1,75X45,25MM) |
| 30. | 526-6547 | [4] | PIN,SPRING |
| 31. | 090-1610 | [1] | BEARING,ROLLER |
| 32. | 090-1610 | [1] | RING,RETAINING |
| 33. | 09N-4393 | [1] | BEARING,AS-ROLLER |
| 34. | 126-8004 | [1] | SEAL,LIP TYPE |
| 35. | 126-8005 | [1] | CLIP |
| 36. | 24J-3360 | [1] | SEAL,O-RING |
| 37. | SP-4239 | [1] | SEAL,O-RING |
| 38. | 70-5433 | [1] | CONNECTOR(1/16-14NDS) |
| 39. | 81-5344 M | [1] | NUT(M12X1,75-14D) |
| 1U-6686 BF | SEALANT,GASKET |
More Branded Accessories are Available
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), alibab trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
