JCB JS130 JS160 Excavator Hydraulic Main Piston Pump K3V63DTP-9C22-14T 20/925328 20/925329
Price:
Negotiation
MOQ:
1 PCS
Delivery Time:
3-7 Day
Brand:
Belparts
Product Description
Hydraulic Pump For JCB JS130 JS160 Excavator Spare Parts 20/925328 20/925329 20/925506 KNJ1817 K3V63DTP-9C22-14T Main Piston Pump
| Application | Excavator |
|---|---|
| Part name | Hydraulic Main pump |
| Machine model |
JCB JS130 JS160 |
| Type | K3V63DTP-9C22-14T |
| Part number | 20/925328 20/925329 20/925506 KNJ1817 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China High Quality |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |

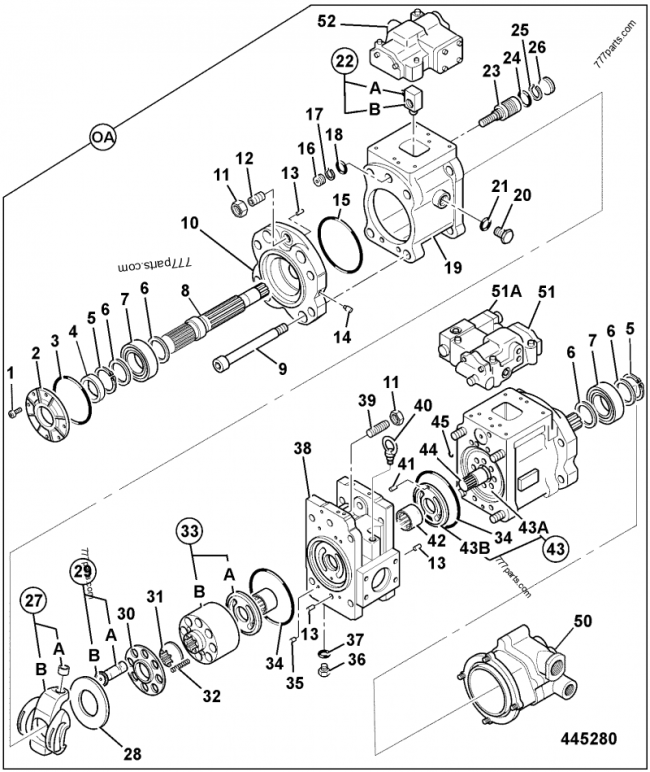

| # | Part No. | Description | Qty |
|---|---|---|---|
| 18 | 828/10212 | Seal, O ring | 2 |
| 13 | LMP0217 | Pin, spring | 4 |
| 8 | 20/951272 | Shaft, drive,front | 1 |
| 2 | 20/951266 | Cover, front,seal | 1 |
| 37 | LBQ0112 | O Ring | 2 |
| 6 | 20/951268 | Spacer, bearing | 4 |
| 45 | LBQ0082 | O Ring | 18 |
| 4 | 20/951263 | Seal, oil | 1 |
| 3 | 828/10220 | Seal, O ring | 1 |
| 7 | 20/950622 | Bearing, roller | 2 |
| A | 20/925328 | Pump, main hyd., 2x55cc C/W 9cc pilot | 1 |
| 12 | LUP0189 | Screw | 2 |
| 17 | 20/950602 | Ring, back-up | 2 |
| 27B | N.S.P. | None serviced part | 2 |
| 33 | 20/950629 | Cylinder, assembly | 1 |
| 22 | 20/951273 | Pin, tilting,assembly | 2 |
| 23 | 20/950606 | Piston, servo | 2 |
| 39 | 826/10670 | Screw, set | 2 |
| 20 | 20/950609 | Plug | 4 |
| 40 | 126R010SN | Bolt, eye | 2 |
| 44 | 20/951271 | Shaft, drive, rear | 1 |
| 26 | 20/951264 | Stopper, large | 2 |
| 28 | 20/950616 | Plate, shoe | 2 |
| 41 | 826/10673 | Pin, dowel | 2 |
| 24 | 828/10221 | Seal, O ring | 2 |
| 34 | 828/10217 | O Ring | 2 |
| 51 | 20/951260 | Regulator, assembly | 1 |
| 50 | 20/950961 | Pump, Servo | 1 |
| 31 | 20/950618 | Bush, spherical | 2 |
| 43A | N.S.P. | None serviced part | 1 |
| 33B | N.S.P. | None serviced part | 1 |
| 25 | 20/950601 | Ring, back-up | 2 |
| 11 | 162R016VZ | Nut, high strength | 4 |
| 29B | N.S.P. | None serviced part | 18 |
| 38 | 20/951265 | Block, valve | 1 |
| 14 | LLP0041 | Plug | 15 |
| 5 | 20/950600 | Circlip | 2 |
| 32 | 20/950617 | Spring | 18 |
| 27A | N.S.P. | None serviced part | 2 |
| 43 | 20/950628 | Cylinder, assembly, rear | 1 |
| 36 | LLM0028 | Plug | 2 |
| 29 | 20/950630 | Piston, assembly | 18 |
| 51A | 20/950631 | Valve, proportional, reducing | 1 |
| 51B | 20/951493 | Kit, Seal, regulator front | 1 |
| 9 | 826/10677 | Screw, cap,skt head | 8 |
| 11 | 162R016VN | Nut, high, strength | 4 |
| 33A | N.S.P. | None serviced part | 1 |
| 22A | N.S.P. | None serviced part | 2 |
| 21 | LBQ0182 | O Ring; REPLACES LBC0031, SAN 13121 | 4 |
| 52B | 20/951494 | Kit, Seal, regulator rear | 1 |
| 15 | 828/10218 | Seal, O ring | 2 |
| 1 | 826/10676 | Screw, cap, SKT head | 4 |
| 43B | N.S.P. | None serviced part | 1 |
| 16 | 20/950604 | Stopper, small | 2 |
| 42 | 20/951269 | Bearing, needle | 2 |
| 35 | 826/10673 | Pin, dowel | 2 |
| 52 | 20/951261 | Regulator, assembly | 1 |
| 29A | N.S.P. | None serviced part | 18 |
| 10 | 20/950615 | Plate, end support | 2 |
| 27 | 20/950627 | Plate, swash assembly | 2 |
| 22B | N.S.P. | None serviced part | 2 |
| 30 | 20/951267 | Plate, set | 2 |
| 19 | 20/950612 | Casing, pump | 2 |
More Branded Accessories Available
Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
FAQ
1. If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), alibab trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
6. What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
