R210-9 R210LC-9 Hydraulic Bucket Cylinder For Hyundai Excavator Spare Parts 31Q6-50131 31Q6-56100 Aftermarket High Quality

Price Negotiable
Price: Negotiation
MOQ: 1 PCS
Delivery Time: 3-7 Day
Brand: Belparts
Product Description

R210-9 R210LC-9 Hydraulic Bucket Cylinder For Hyundai Excavator Spare Parts 31Q6-50131 31Q6-56100 Aftermarket High Quality

Appliion
Excavator
Part name
Hydraulic Bucket Cylinder
Suitable for
R210-9 R210LC-9
Part Number 31Q6-50131 31Q6-56100
Warranty
12 months
Delivery time
3-7 Days
Shipment
Express/freight/sea/train
Quality
Aftermarket High Quality
MOQ
1 Piece
Payment term
T/T, Trade Assurance, Paypal and et

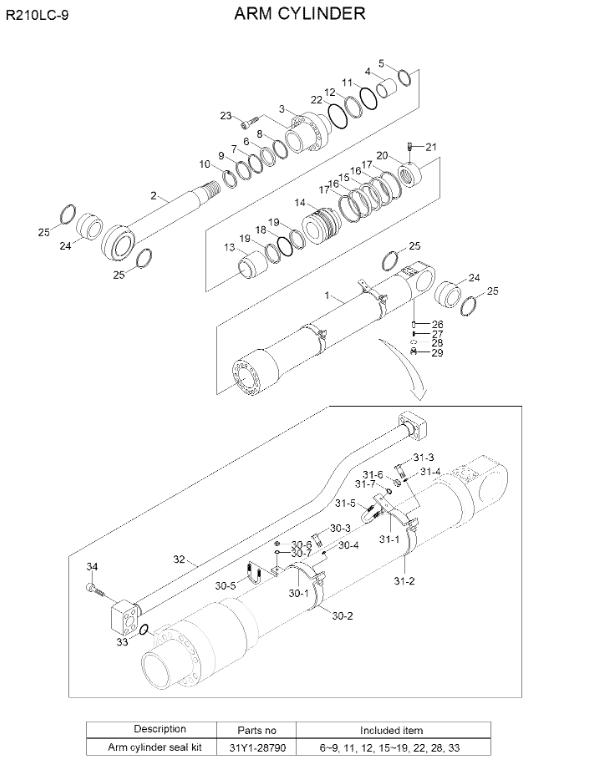

Pos. Part No Qty Parts name Comments
*. 31Q6-50131 [1] ARM CYLINDER ASSY STD
*. 31Q6-56100 [1] ARM CYLINDER ASSY L/REACH
*-1. 31Y1-28630 [1] ARM CYL SUB ASSY WITHOUT PIPE
*-1. 31Y1-28631 [1] ARM CYL SUB ASSY WITHOUT PIPE
*-1. 31Y1-36980 [1] ARM CYL SUB ASSY L/REACH
1 31Y1-28640 [1] TUBE ASSY STD
1 31Y1-36990 [1] TUBE ASSY L/REACH
2 31Y1-28700 [1] ROD ASSY STD
2 31Y1-37040 [1] ROD ASSY L/REACH
N2-3. @ [1] SPEAR-CUSHION
3 31Y1-28740 [1] GLAND
3 31Y1-28741 [1] GLAND
4 S732-100040 [1] BUSHING-DD2
5 Y191-107000 [1] RING-SNAP
K6. Y220-100013 [1] SEAL-ROD
K7. Y180-100020 [1] RING-BACK UP
K8. Y240-100012 [1] RING-BUFFER
K9. Y110-100011 [1] WIPER-DUST
10 Y190-114000 [1] RING-SNAP
K11. S631-130004 [1] O-RING
K12. 31YC-CP130 [1] RING-BACK UP
13 31YC-26015 [1] RING-CUSHION
13 31YC-28030 [1] RING-CUSHION
14 31Y1-28770 [1] PISTON
14 31Y1-28771 [1] PISTON
K15. Y420-140000 [1] SEAL-PISTON
K15. Y420-140002 [1] SEAL-PISTON
K16. Y310-140103 [2] RING-WEAR
K17. Y440-140202 [2] RING-DUST
K18. S632-075004 [1] O-RING
K19. S642-075003 [2] RING-BACK UP
20 31YC-68050 [1] NUT-LOCK
21 S114-100164 [1] SCREW-SET
K22. S632-140004 [1] O-RING
23 S109-180904 [14] BOLT-SOCKET
24 61Q6-97230 [2] BUSHING-PIN STD
24 61Q6-97231 [2] BUSHING STD
24 61QH-73030 [2] BUSHING-PIN STD
24 61Q6-97220 [2] BUSHING-PIN L/REACH
24 61Q6-97221 [2] BUSHING-PIN L/REACH
24 61QH-73020 [2] BUSHING-PIN L/REACH
25 Y020-080000 [4] SEAL-DUST,DLI,KPU
26 31YC-2A070 [1] VALVE-CHECK
27 31YC-99071 [1] SPRING-COIL
K28. S631-014004 [1] O-RING
29 P220-110103 [1] PLUG-HEX
30 31Y1-29170 [1] BAND ASSY-R
30 31Y1-29171 [1] BAND ASSY-R
30-1. 31Y1-29180 [1] BAND SUB ASSY
30-2. 31Y1-29190 [1] BAND SUB ASSY
30-3. S015-120452 [2] BOLT-HEX
30-3. S015-120456 [2] BOLT-HEX
30-4. S411-120002 [2] WASHER-SPRING
30-4. S411-120006 [2] WASHER-SPRING
30-5. S071-023430 [1] U-BOLT
30-5. S070-053446 [1] U-BOLT
30-6. S201-101002 [2] NUT-HEX
30-6. S201-101006 [2] NUT-HEX
30-7. S411-100002 [2] WASHER-SPRING
30-7. S411-100006 [2] WASHER-SPRING
31 31Y1-29200 [1] BAND ASSY-B
31 31Y1-29201 [1] BAND ASSY-B
31-1. 31Y1-29210 [1] BAND SUB ASSY
31-2. 31Y1-29190 [1] BAND SUB ASSY
31-3. S015-120452 [2] BOLT-HEX
31-3. S015-120456 [2] BOLT-HEX
31-4. S411-120002 [2] WASHER-SPRING
31-4. S411-120006 [2] WASHER-SPRING
31-5. S071-023430 [1] U-BOLT
31-5. S070-053446 [1] U-BOLT
31-6. S201-101002 [2] NUT-HEX
31-6. S201-101006 [2] NUT-HEX
31-7. S411-100002 [2] WASHER-SPRING
31-7. S411-100006 [2] WASHER-SPRING
32 31Y1-29220 [1] PIPE ASSY-R
32 31Y1-37070 [1] PIPE ASSY-R L/REACH
K33. Y171-024004 [1] O-RING
34 S107-120554 [4] BOLT-SOCKET
34 S107-120556 [4] BOLT-SOCKET
K. 31Y1-28790 [1] SEAL KIT SEE ILLUST
N. @ [AR] NOT SUPPLIED PARTS
