PC300-7 706-7K-01040 Excavator Swing Gearbox Hydraulic Gear Motor
Price:
Negotiable Price
MOQ:
1 piece
Delivery Time:
1-7days
Brand:
Belparts
Product Description
Excavator hydraulic gear motor PC300-7 excavator 706-7K-01040 swing gearbox

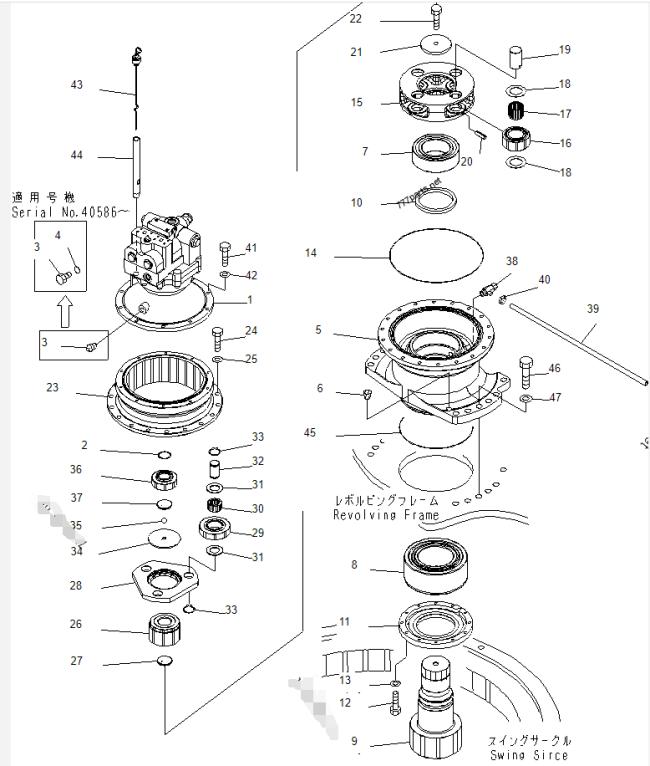

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | (706-7K-01040) | MOTOR ASS'Y,(SEE FIG. Y1640-01A0) | 1 | |
| 1 | (706-7K-01011) | MOTOR ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0 | ||||
| 1 | (706-7K-03030) | MOTOR SUB ASS'Y | 1 | |
| 1 | (706-7K-03011) | MOTOR SUB ASS'Y | 1 | |
| 1 | (*706-7K-41610) | Shaft | 1 | |
| 2 | (*706-77-43880) | Bearing | 1 | |
| 3 | (*706-7K-41810) | Spacer | 1 | |
| 4 | (*706-77-42051) | Spring | 2 | |
| 5 | (*706-77-42041) | SEAT | 1 | |
| 6 | (*706-77-42890) | Bearing | 1 | |
| 7 | (*706-77-05010) | SPACER KIT | 1 | |
| 7 | SPACER? 2.3MM | 2 | ||
| 7 | SPACER? 2.5MM | 2 | ||
| 7 | SPACER? 2.7MM | 2 | ||
| 8 | 04064-06525 | RING, RETAINING | 1 | |
| 9 | 706-77-43950 | SEAL,OIL | 1 | |
| 10 | 04065-07525 | RING, SNAP | 1 | |
| 11 | (*706-7K-41210) | BLOCK,CYLINDER | 1 | |
| 12 | (*706-7K-41710) | PLATE,VALVE | 1 | |
| 13 | (*708-18-13230) | Pin | 1 | |
| 14 | (*706-7K-41120) | SHAFT,CENTER | 1 | |
| 15 | (*706-77-42130) | RING,CENTER | 1 | |
| 16 | (*706-7K-41140) | Spring | 1 | |
| 17 | (*706-7K-05010) | RETAINER KIT | 1 | |
| 17 | Retainer | 1 | ||
| 18 | Screw | 7 | ||
| 19 | (*706-7K-41160) | PISTON SUB ASS'Y | 7 | |
| 20 | (*706-7K-91340) | Plate | 5 | |
| 21 | (*706-7K-91350) | Disc | 4 | |
| 22 | (*706-7K-91111) | PISTON,BRAKE | 1 | |
| 23 | (*07000-15230) | O-ring | 1 | |
| 24 | (*708-8H-15220) | O-ring | 1 | |
| 25 | (*706-7K-91360) | Spring | 6 |
|
Company Information

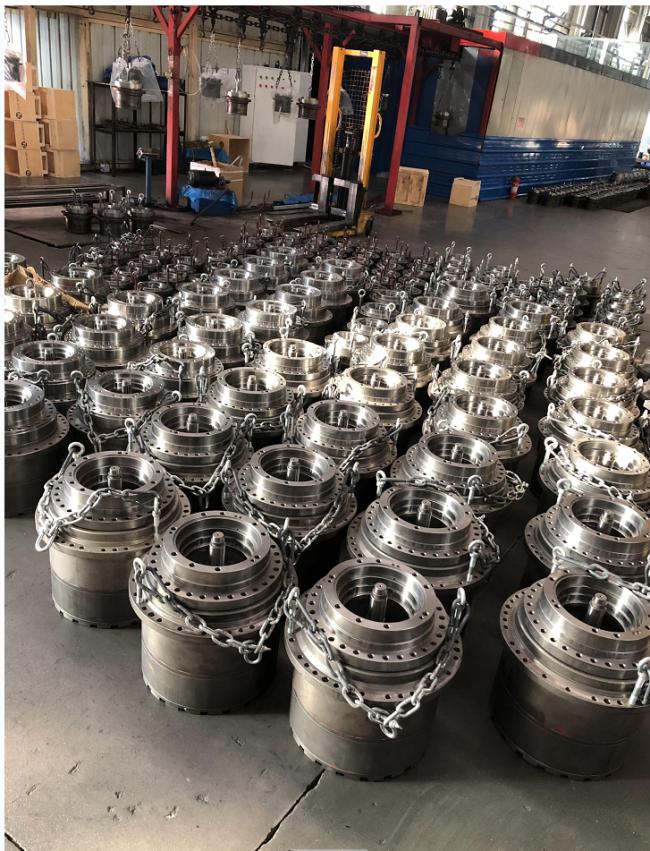

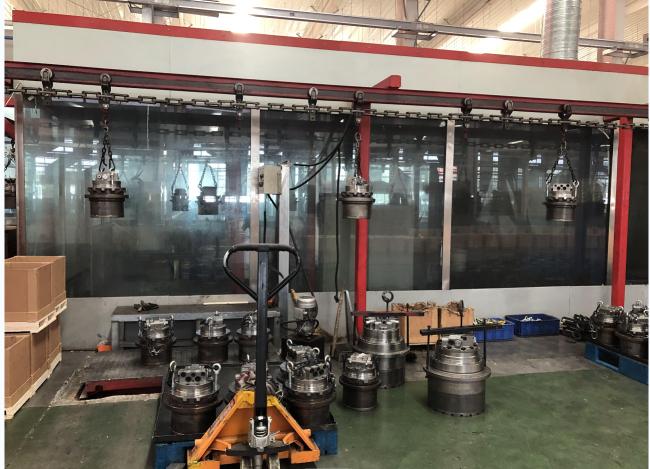

Factory
Packing & Delivery
Packaging Details:
1.According to orders, pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed with oil paper and plastic bags inside
6.Using wooden case package.
7.We support the custom-made demand for package
