ZX200-3 EX200-3 Excavator Swing Drive , 9196963 Hydraulic Motor Reduction Gearbox
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-7days
Brand:
Belparts
Product Description
Excavator ZX200-3 hydraulic swing reduction gear 9196963 swing gearbox swing device
Product Description
|
Appliion |
Excavator |
|
Part name |
Swing Gearbox |
|
Material |
Steel |
|
Model |
EX200-3 |
|
MOQ |
1PC |
|
Payment term |
T/T&Paypal |
|
Delivery Time |
Within 2 days after receiving the payment |
|
Packing |
Standard shipping package |

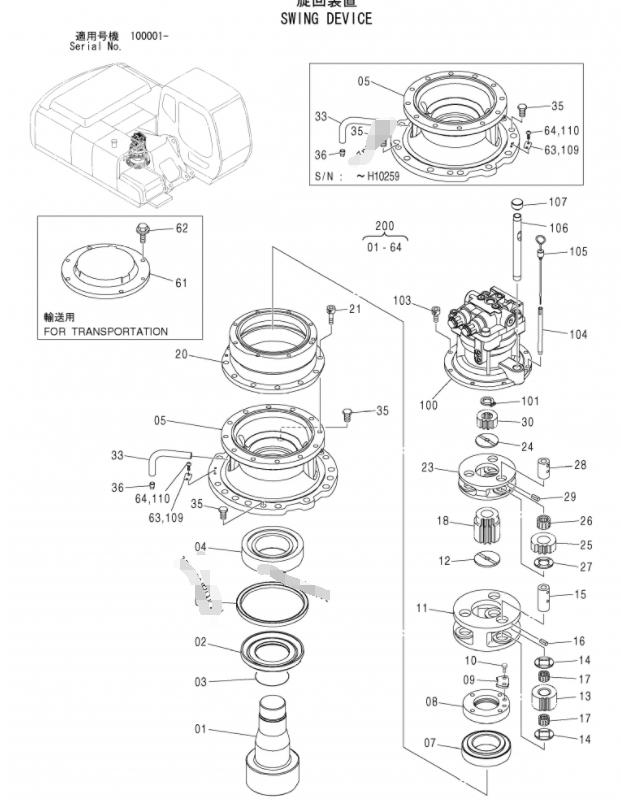

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 01 | 2044634 | SHAFT; PROP. | 1 | |
| 02 | 3083742 | SLEEVE | 1 | |
| 03 | A811120 | O-RING | 1 | |
| 04 | 4402481 | BRG.; ROL. | 1 | |
| 05 | 1027617 | HOUSING | 1 | |
| 05 | 1032876 | HOUSING | 1 | |
| 06 | 4411535 | SEAL; OIL | 1 | |
| 07 | 4402637 | BRG.; ROL. | 1 | |
| 08 | 3086064 | NUT | 1 | |
| 09 | 4411122 | PLATE; LOCK | 1 | |
| 10 | J901020 | BOLT | 2 | |
| 11 | 1026662 | CARRIER | 1 | |
| 12 | 4187590 | PLATE; THRUST | 1 | |
| 13 | 3084729 | GEAR; PLANETARY | 3 | |
| 14 | 4336929 | PLATE; THRUST | 6 | |
| 15 | 4336925 | PIN | 3 | |
| 15 | 4488904 | PIN | 3 | |
| 16 | 4027427 | PIN; SPRING | 3 | |
| 17 | 4427630 | BRG.; NEEDLE | 6 | |
| 17 | 4461644 | BRG.; NEEDLE | 6 | |
| 17 | 4631475 | BRG.; NEEDLE | 6 | |
| 18 | 3080912 | GEAR; SUN | 1 | |
| 20 | 1025957 | GEAR; RING | 1 | |
| 21 | M341645 | BOLT; SOCKET | 12 | |
| 23 | 1025912 | CARRIER | 1 | |
| 24 | 4403371 | PLATE; THRUST | 1 | |
| 25 | 3082517 | GEAR; PLANETARY | 3 | |
| 26 | 4404506 | BRG.; NEEDLE | 3 | |
| 27 | 4403082 | PLATE; THRUST | 3 | |
| 28 | 4336923 | PIN | 3 | |
| 29 | 4051262 | PIN; SPRING | 3 | |
| 30 | 3084056 | GEAR; SUN | 1 | |
| 33 | 3089362 | PIPE | 1 | |
| 35 | 4445352 | PLUG | 2 | |
| 36 | 94-2012 | PLUG | 1 | |
| 61 | 3090308 | COVER (FOR TRANSPORTATION) | 1 | |
| 62 | J011230 | BOLT; SEMS | 4 | |
| 62 | J271230 | BOLT; SEMS (FOR TRANSPORTATION) | 4 | |
| 63 | 3053093 | NAME-PLATE (FOR TRANSPORTATION) | 1 | |
| 64 | M492564 | SCREW; DRIVE (FOR TRANSPORTATION) | 2 | |
| 100 | 4398514 | MOTOR; OIL | 1 | |
| 101 | 991342 | RING; RETAINING | 1 | |
| 103 | M341228 | BOLT; SOCKET | 8 | |
| 103 | 4614096 | BOLT; SOCKET | 8 | |
| 104 | 4264452 | PIPE | 1 | |
| 105 | 3074223 | GAUGE; LEVEL | 1 | |
| 106 | 4332658 | PIPE | 1 | |
| 107 | 4343365 | CAP | 1 | |
| 109 | 3053093 | NAME-PLATE | 1 | |
| 110 | M492564 | SCREW; DRIVE | 2 | |
| 200 | 9196963 | SWING DEVICE (WITHOUT MOTOR) | 1 |
|
Company Information
Packing
- Packaging Details:
- 1.According to orders, pack the spare parts one by one by oil paper;
- 2.Put them into small carton boxes one by one;
- 3.Put the packed small carton boxes into bigger carton boxes one by one;
- 4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
- 5. Goods is packed with oil paper and plastic bags inside
- 6.Using wooden case package.
- 7.We support the custom-made demand for package
