R220LC-9S Excavator Swing Gearbox , 39Q6-12100 Hydraulic Gear Motor

Price Negotiable
Price: Negotiable Price
MOQ: 1 piece
Delivery Time: 1-7days
Brand: Belparts
Product Description



Excavator R220LC-9S excavator swing gearbox 39Q6-12100 hydraulic gear motor



Appliion

Excavator

Part name

Travel reduction gearbox

Part number

39Q6-12100

Model

R220LC-9S

MOQ

1PC

Warranty

6 months

Payment term

T/T,  PayPal

Delivery

1 day after the payment received

Shipment

by sea, by air, by express, or as required

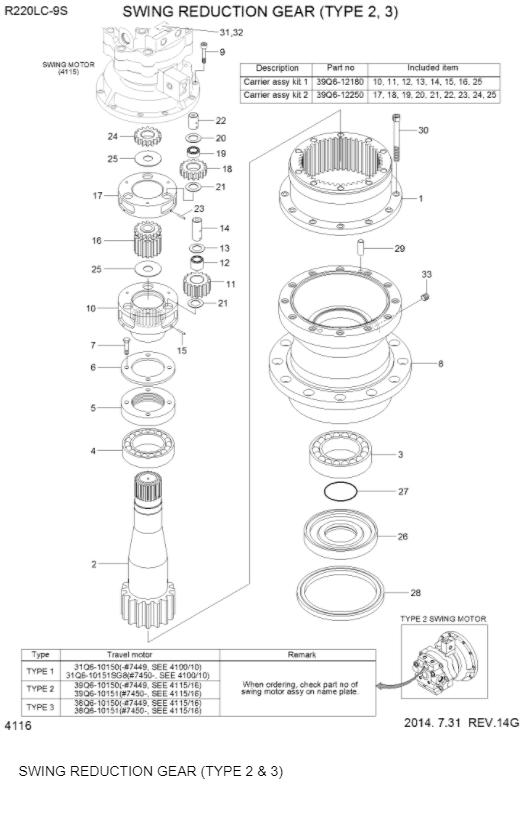

List of Spare Parts


Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4115
*-2. 39Q6-12100 [1] SWING REDUCTION GEAR HYMS
*-2. 39Q6-12101 [1] SWING REDUCTION GEAR HYMS
*-2. 39Q6-12102 [1] SWING REDUCTION GEAR HYMS
1. 39Q6-12110 [1] GEAR-RING
2. 39Q6-12121 [1] SHAFT-DRIVE
3. 39Q6-12130 [1] BEARING-TAPER.MAIN
4. 39Q6-12140 [1] BEARING-TAPER
5. 39Q6-12150 [1] NUT-RING
6. 39Q6-12161 [1] PLATE-LOCK
7. S017-120166 [4] BOLT-HEX
8. 39Q6-12171 [1] CASING
8. 39Q6-12172 [1] CASING
9. S109-100306 [10] BOLT-SOCKET
10. 39Q6-12190 [1] CARRIER 2
11. 39Q6-12200 [3] GEAR-PLANETARY 2
12. 39Q6-12210 [6] BEARING-NEEDLE 2
13. 39Q6-12220 [6] WASHER-THRUST 2
14. 39Q6-12230 [3] PIN-CARRIER 2
15. S472-800364 [3] PIN-SPRING
16. 39Q6-12240 [1] GEAR-SUN 2
17. 39Q6-12260 [1] CARRIER 1
18. 39Q6-12271 [3] GEAR-PLANETARY 1
19. 39Q6-12280 [3] BEARING-NEEDLE 1
20. 39Q6-12290 [3] WASHER-THRUST 1,UPP
21. 39Q6-12300 [3] WASHER-THRUST 1,LOW
22. 39Q6-12310 [3] PIN-CARRIER 1
23. S472-600364 [3] PIN-SPRING
24. 39Q6-12320 [1] GEAR-SUN 1
25. 39Q6-12330 [2] PLATE-THRUST
26. 39Q6-12340 [1] SLEEVE
27. S631-120001 [1] O-RING
28. 39Q6-12350 [1] SEAL-OIL
29. 39Q6-41450 [2] PIN-PARALLEL
30. S109-16045D [12] BOLT-SOCKET
31. 39Q6-12360 [1] NAME PLATE
31. 39Q6-12361 [1] NAME PLATE
31. 39Q6-12362 [1] NAME PLATE
32. 39Q6-41800 [2] RIVET
33. P220-430204 [1] PLUG-HEX
*-1. @ [1] SWING MOTOR UNIT SEE 4115
K1. 39Q6-12180 [1] CARRIER ASSY KIT 1 SEE ILLUST
K2. 39Q6-12250 [1] CARRIER ASSY KIT 2 SEE ILLUST
