EX120-2 Mini Excavator Swing Motor , 4241171 Swing Drive Hydraulic Motor
Excavator EX120-2 swing motor assy 4241171 excavator parts swing motor
Product Description
|
Appliion |
Excavator |
|
Part name |
Belparts swing motor |
|
Material |
Steel |
|
Model |
EX120-2 |
|
MOQ |
1PC |
|
Payment term |
T/T, Paypal, Trade assurance, or as required |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |

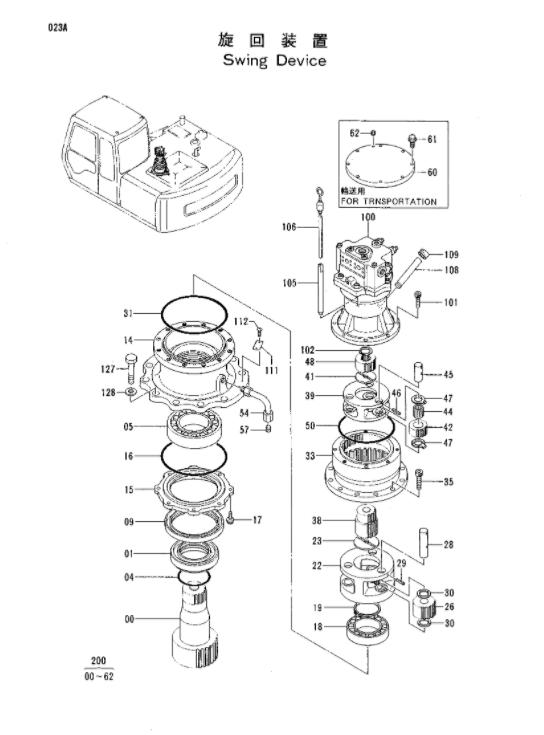

List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 2028036 | [1] | SHAFT;PROP. | |
| 01. | 4244693 | [1] | SLEEVE | |
| 04. | A811100 | [1] | O-RING | |
| 05. | 4248609 | [1] | BRG.;SPH.ROL. | |
| 09. | 4244691 | [1] | SEAL;OIL | |
| 14. | 1014526 | [1] | HOUSING | T 1017261 |
| 14. | 1014526 | [1] | HOUSING | 3058620 |
| 14. | 1017261 | [1] | HOUSING | |
| 15. | 3049949 | [1] | COVER | T 3058620 |
| 15. | 3049949 | [1] | COVER | 1017261 |
| 15. | 3058620 | [1] | COVER | |
| 16. | 4247567 | [1] | O-RING | |
| 17. | J011035 | [8] | BOLT;SEMS | |
| 18. | 969154 | [1] | BRG.;SPH.ROL. | I 4293424 |
| 18. | 4293424 | [1] | BRG.;SPH.ROL. | |
| 19. | 991350 | [1] | RING;RETAINING | |
| 22. | 2031003 | [1] | CARRIER | |
| 23. | 4258089 | [1] | PLATE;THRUST | |
| 26. | 9732811 | [3] | GEAR;PLANETARY | |
| 28. | 4244696 | [3] | PIN | |
| 29. | 4063351 | [3] | PIN;SPRING | |
| 30. | 4266255 | [6] | PLATE;THRUST | |
| 31. | 4247567 | [1] | O-RING | |
| 33. | 2028037 | [1] | GEAR;RING | |
| 35. | M341450 | [12] | BOLT;SOCKET | |
| 38. | 3046918 | [1] | GEAR;SUN | |
| 39. | 2031106 | [1] | CARRIER | |
| 41. | 4244904 | [1] | PLATE;THRUST | |
| 42. | 3046916 | [3] | GEAR;PLANETARY | |
| 44. | 4249345 | [3] | BRG.;NEEDLE | |
| 45. | 4244689 | [3] | PIN | |
| 46. | 4116307 | [3] | PIN;SPRING | |
| 47. | 4269480 | [6] | PLATE;THRUST | |
| 48. | 3046917 | [1] | GEAR;SUN | |
| 50. | 4244541 | [1] | O-RING | |
| 54. | 8050210 | [1] | PIPE | |
| 57. | 94-2012 | [1] | PLUG | |
| 60. | 8053413 | [1] | COVER | (for transportation) |
| 61. | J011050 | [8] | BOLT;SEMS | (for transportation) |
| 62. | 94-2011 | [1] | PLUG | (for transportation) |
| 100. | 4241171 | [1] | MOTOR;OIL | |
| 101. | M341028 | [8] | BOLT;SOCKET | |
| 102. | 927488 | [1] | RING;RETAINING | |
| 105. | 4264452 | [1] | PIPE | |
| 106. | 3053451 | [1] | GAUGE;LEVEL | |
| 108. | 4255227 | [1] | PIPE | |
| 109. | 4255226 | [1] | CAP | P 4298608 |
| 109. | 4298608 | [1] | CAP | |
| 111. | 3053093 | [1] | NAME-PLATE | |
| 112. | M492564 | [2] | SCREW;DRIVE | |
| 127. | J932060 | [10] | BOLT | |
| 128. | 4018545 | [10] | WASHER | |
| 200. | 9111265 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
