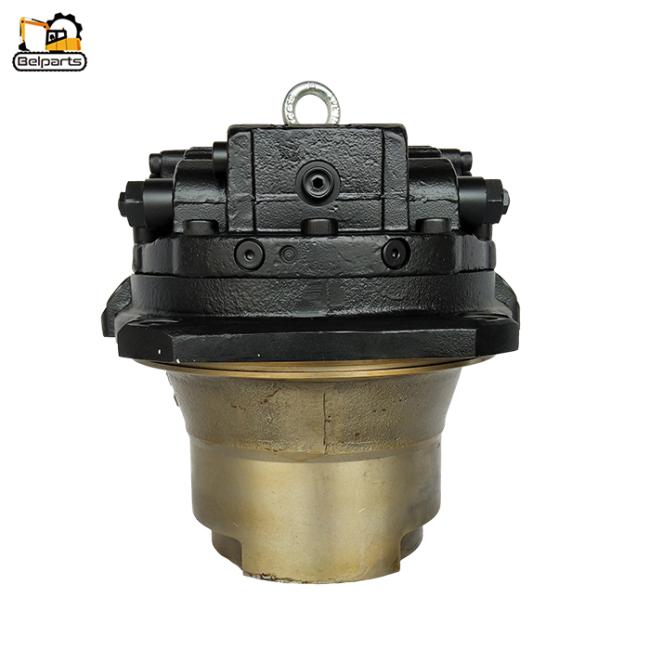

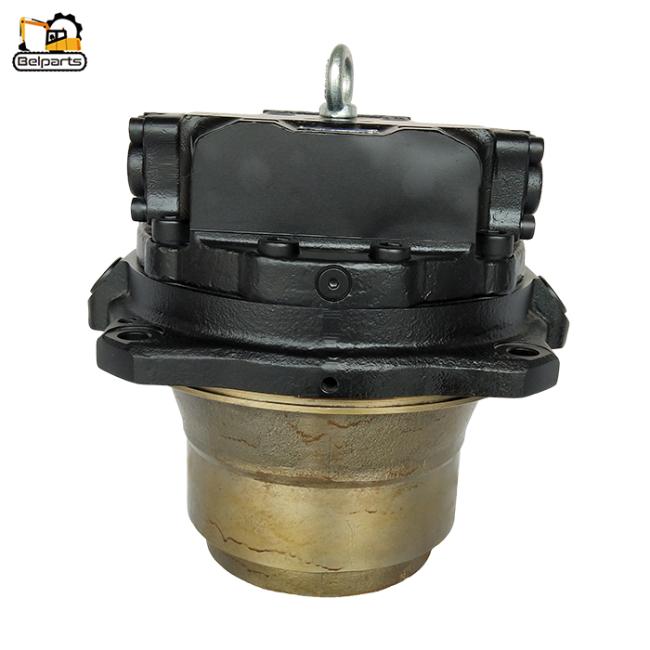

4636857 ZX850-3 ZX850 Travel Motor Assy
Excavator ZX850 Travel Motor Assy 4636857 ZX850-3 Final Drive
|
Name or description of a commodity |
Travel motor |
|
Production address |
China |
|
Type
|
ZX850 |
|
Minimum Order Quantity |
1 piece |
|
Payment Method |
T/T & Paypal |
|
Shipping Time |
Within 2 days after receiving The payment |
|
Packaging |
The first layer is packed in plastic and the second in wooden cases |

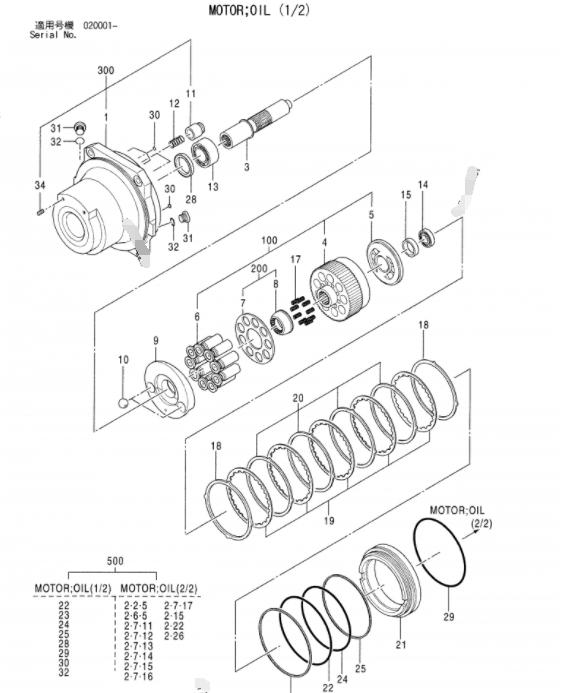

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 4636857 | MOTOR; OIL (1/2) | 1 | ||
| 1 | . CASE | 1 | ||
| 3 | 0809501 | . SHAFT | 1 | |
| 4 | . CYL. | 1 | ||
| 5 | . PLATE | 1 | ||
| 6 | . PISTON | 9 | ||
| 7 | . PLATE | 1 | ||
| 8 | . HOLDER | 1 | ||
| 9 | 0809502 | . PLATE | 1 | |
| 10 | 0682706 | . BALL; STEEL | 2 | |
| 11 | . PISTON ASS'Y | 2 | ||
| 12 | 0809503 | . SPRING | 2 | |
| 13 | 0809504 | . BRG.; ROL. | 1 | |
| 14 | 0809505 | . BRG.; ROL. | 1 | |
| 15 | 0809506 | . COLLAR | 1 | |
| 17 | 0806502 | . SPRING | 9 | |
| 18 | 0979001 | . PLATE; FRICTION | 2 | |
| 19 | 0419808 | . PLATE; DISC | 5 | |
| 20 | 0981602 | . PLATE; FRICTION | 4 | |
| 21 | 0809509 | . PISTON; BRAKE | 1 | |
| 22 | 0411419 | . O-RING | 1 | |
| 23 | 0809510 | . RING; BACK-UP | 1 | |
| 24 | 0419806 | . O-RING | 1 | |
| 25 | 0419812 | . RING; BACK-UP | 1 | |
| 28 | 0979002 | . SEAL; OIL | 1 | |
| 29 | A811260 | . O-RING | 1 | |
| 30 | 4506320 | . O-RING | 4 | |
| 31 | 0809511 | . PLUG | 2 | |
| 32 | 4506424 | . O-RING | 2 | |
| 34 | . PLUG | 2 | ||
| 100 | 0853401 | CYL. ASS'Y | 1 | |
| 200 | 0809513 | RETAINER ASS'Y | 1 | |
| 300 | 0809514 | CASE | 1 | |
| 500 | 0979004 | KIT; SEAL | 1 |
