Excavator R220LC-9S Swing Reduction R290 39Q6-12100 Swing Gear Box
Excavator R220LC-9S swing reduction R290 Slewing gearbox 39Q6-12100 swing gearbox
| Appliion | Excavator |
| Part name | swing gearbox |
| Part number | 39Q6-12100 |
| Model | R220LC-9S |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, PayPal |
| Delivery | 1 day after the payment received |
| Shipment | by sea, by air, by express, or as required |

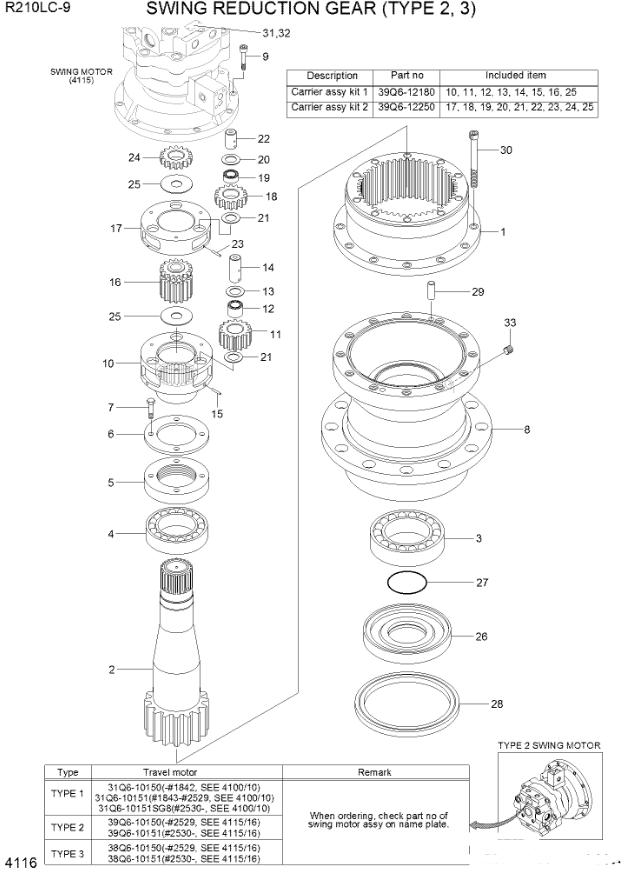

Parts on group
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY |
| *-2. | 39Q6-12100 | [1] | SWING REDUCTION GEAR |
| *-2. | 39Q6-12101 | [1] | SWING REDUCTION GEAR |
| *-2. | 39Q6-12102 | [1] | SWING REDUCTION GEAR |
| 1. | 39Q6-12110 | [1] | GEAR-RING |
| 2. | 39Q6-12121 | [1] | SHAFT-DRIVE |
| 3. | 39Q6-12130 | [1] | BEARING-TAPER.MAIN |
| 4. | 39Q6-12140 | [1] | BEARING-TAPER |
| 5. | 39Q6-12150 | [1] | NUT-RING |
| 6. | 39Q6-12160 | [1] | PLATE-LOCK |
| 6. | 39Q6-12161 | [1] | PLATE-LOCK |
| 7. | S017-120166 | [4] | BOLT-HEX |
| 8. | 39Q6-12171 | [1] | CASING |
| 8. | 39Q6-12172 | [1] | CASING |
| 9. | S109-100306 | [10] | BOLT-SOCKET |
| 10. | 39Q6-12190 | [1] | CARRIER 2 |
| 11. | 39Q6-12200 | [3] | GEAR-PLANETARY 2 |
| 12. | 39Q6-12210 | [6] | BEARING-NEEDLE 2 |
| 13. | 39Q6-12220 | [6] | WASHER-THRUST 2 |
| 14. | 39Q6-12230 | [3] | PIN-CARRIER 2 |
| 15. | S472-800364 | [3] | PIN-SPRING |
| 16. | 39Q6-12240 | [1] | GEAR-SUN 2 |
| 17. | 39Q6-12260 | [1] | CARRIER 1 |
| 18. | 39Q6-12271 | [3] | GEAR-PLANETARY 1 |
| 19. | 39Q6-12280 | [3] | BEARING-NEEDLE 1 |
| 20. | 39Q6-12290 | [3] | WASHER-THRUST 1,UPP |
| 21. | 39Q6-12300 | [3] | WASHER-THRUST 1,LOW |
| 22. | 39Q6-12310 | [3] | PIN-CARRIER 1 |
| 23. | S472-600364 | [3] | PIN-SPRING |
| 24. | 39Q6-12320 | [1] | GEAR-SUN 1 |
| 25. | 39Q6-12330 | [2] | PLATE-THRUST |
| 26. | 39Q6-12340 | [1] | SLEEVE |
| 27. | S631-120001 | [1] | O-RING |
| 28. | 39Q6-12350 | [1] | SEAL-OIL |
| 29. | 39Q6-41450 | [2] | PIN-PARALLEL |
| 30. | S109-16045D | [12] | BOLT-SOCKET |
| 31. | 39Q6-12360 | [1] | NAME PLATE |
| 31. | 39Q6-12361 | [1] | NAME PLATE |
| 31. | 39Q6-12362 | [1] | NAME PLATE |
| 32. | 39Q6-41800 | [2] | RIVET |
| 33. | P220-430204 | [1] | PLUG-HEX |
| *-1. | @ | [1] | SWING MOTOR UNIT |
| K1. | 39Q6-12180 | [1] | CARRIER ASSY KIT 1 |
| K2. | 39Q6-12250 | [1] | CARRIER ASSY KIT 2 |
Company Description
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox.
The founder of our company has more than 9 years experience in importing and exporting and is able to help customers solve various import and export problems. We maintain good long-term relationships with all kinds of accessories factories. Thus, we can help develop and produce new products according to customer’s requirements or samples, providing technical support to customers and offering perfect services.
Factory
Why Choose Us
Exhibition
Customer Evaluation
Delivery
-
1. Commodities will be sent to all the countries all over the world.
-
2. Please make sure that your address and contact information is correct.
-
3. Products will be carefully checked before shipment.
-
4. Generally, items will be shipped 2 working days after the payment is received.
-
5.Should any delay happen due to logistic company and local customers or duties, we will inform via message or email immediately and your understanding will be highly appreciated.
-
6.Strong carton or wooden box for gear components. Wooden box for gearbox assembly
-
7.Delivery methods: By Sea, By air to the local international airport, By express like DHL TNT FEDEX
