Bulk Network Cable CAT6 UTP 24AWG 0.51mm Bare Copper PVC Jacket
Cat 6 Network Cable, UTP Cat 6 Cable, Bare Copper, Indoor, 24AWG, 0.51mm Application
It can be applied in horizontal cabling, as the portion of a telecommunications cabling system that extends from the work area telecommunications outlet to the patch panels in the distribution room, and in residential cabling that extends from the user telecommunications outlet to the patch panels.
TC's UTP-13/23 series, indoor Cat 6 unshielded cabling system invests in new AWG24 conductors with smaller diameter.
Apart from ease of installation, it has test frequency up to 250MHZ. In the meantime, it supports the latest 5G Base-T applications and Power Over Ethernet (POE/POE+).
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details

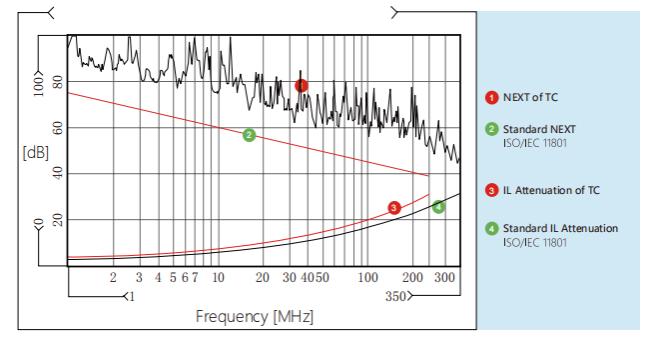

| Transmission Performance | Cat.6 | TC | |||||
| Frequency (MHz) | 4 | 31.25 | 62.5 | 100 | 200 | 250 | 350 |
| IL Attenuation (dB/100M) | 3.2 | 9.5 | 13.7 | 17.5 | 23.1 | 27.9 | 31 |
| Near End Crosstalk Attenuation (NEXT, dB) | 94.7 | 63.2 | 67.3 | 62.7 | 63.9 | 55.8 | 48.2 |
| NEXT Power and PS NEXT (dB) | 78 | 63.3 | 67.4 | 61.2 | 54.3 | 52.9 | 50.9 |
| Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) | 77 | 78.9 | 84.5 | 83.8 | 84.9 | 70.5 | 60.9 |
| ACR-F Power and PS ACR-F (dB) | 72.8 | 62.8 | 72.4 | 70.9 | 69.7 | 65.3 | 60.3 |
| Return Loss (RL, dB) | 32.8 | 38.6 | 32.8 | 38.6 | 32.5 | 27.8 | 25.3 |
Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.
| Physical Specifications | |
| Conductor Size (nominal value) |
4×2×0.51 (AWG24)
|
| Outer Diameter of Cable (nominal value) |
6.0mm
|
| Weight (305m, with package, nominal value) |
13kg
|
| Electrical Properties | |
| DC resistance (20℃ ) |
93.8Ω/km
|
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance |
100Ω±15Ω
|
| Transverse Conversion Loss (TCL) |
≥ 55dB-20×lgf (100-2000MHz)
|
| Delay Skew | 25ns/100m |
| NVP |
65%
|
| Power Over Ethernet (POE) | Enhanced Power Over Ethernet under IEEE 802.3at |
| Mechanical Properties | |
| Minimum Bend Radius (dynamic) |
24mm
|
| Minimum Bend Radius (static) |
48mm
|
| Maximum Installation Tension |
100N
|
| Anti-Extrusion Capacity | 1000N/10cm |
| Anti-Shock Capacity | ≥ 10 times |
| Installation Temperature Range | -0℃ ~+40℃ |
| Working Temperature Range | -20℃ ~+75℃ |
| Flammability (PVC) | |
| PVC Flame Resistance | GB/T 18380.12 (IEC 60332-1-2) |
| Fire Rating CM | UL 1581 |
