Vacuum Wood Grain Machine For Wooden Door 3500mm*1500m Working table
vacuum wood effect grain transfer machine for Wooden door
1. Product Description
Product Application
The equipment is used to transfer the wood grain to wooden doors.
Wood effect machine Working Process
First put the door on the platform, the surface dust blowing clean, and then sprayed with special plastic glue to ensure that the front door, the side
are even cloth rubber, if you need to do stripes effect, you can do in the stripes where the laying of cutting Good transfer film.After the glue dry
,put the door on the plastic machine platform, covered with grain transfer film, adjust machine temperature to 120-140 degrees, the blister
pressure transferred to 0.7-0.8Mpa for plastic. The Secondary spray glue and plastic, repeat the first process .
|
Specifications of wood grain transfer machine |
||
|
No |
Name |
Parameters |
|
1 |
Machine overall size |
L4500mm*W3500mm*H1650mm or customized |
|
2 |
Machine overall size |
L4500mm*W3500mm*H1650mm or customized |
|
3 |
Working table size(L*W) |
3500mm*1500m or customized |
|
4 |
Land required (L*W*H) |
Customized |
|
5 |
Labor required (persons) |
1~2 |
|
6 |
Vacuuming system |
2 sets hydraulic |
|
7 |
Silicone membrane working table |
2 sets |
|
8 |
Waste exhausting and security system |
2 sets |
|
9 |
Heat preservation device |
2 sets |
|
10 |
Heating power |
1.2KW |
|
11 |
Vacuum pump power |
1.5KW |
|
12 |
Heating time |
3~5min |
|
13 |
Transfer printing temperature |
120~140℃ |
|
14 |
Machine weight |
1300~2200KG |
|
15 |
Pressure |
0.7-0.8Mpa |

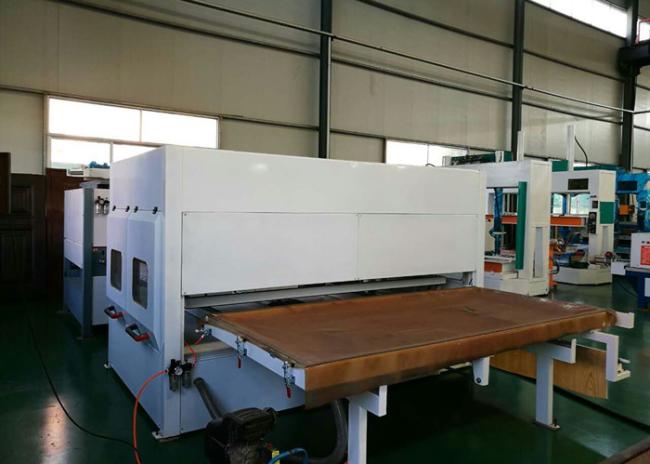

2.Product Pictures

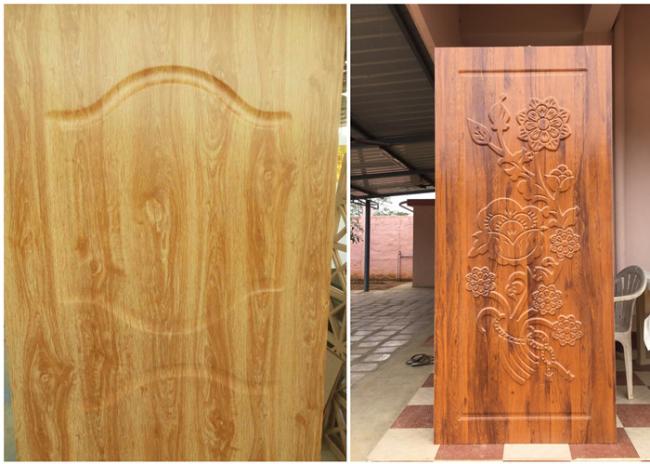

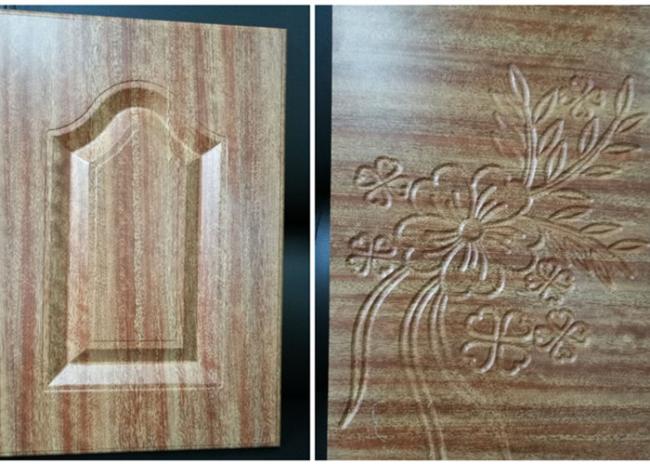

3.Product transfer effect
4.Advantages
4.1. Perfect decoration effect:
Wood effect decoration is good, clear patterns,strong adhesion,without decoration leakage on deep slot,corner turns
4.2. Low cost and high efficiency
Compared to original manual transfer printing method,this new type transfer printing machine has two working tables (alternative working),1~2
workers enough to finish the whole working process. It takes 5~8 mins to finish wood effect decoration process,open the working table,remove the
transfer film,no any additional working process.
4.3. Durable
1).The vacuum suction use special PVC plastic films,good adsorption,heat resistance and long life time
2). Electric control system adopts domestic and foreign well-known brands which is safe and reliable.Ensure the transfer printing machine running
safely and effectively,reduce frequency and cost of maintenance.
4.4. Easy operation
It is very easy to operate this machine,no need more technical training.
5.Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
Guarantee and after-sale service
The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.

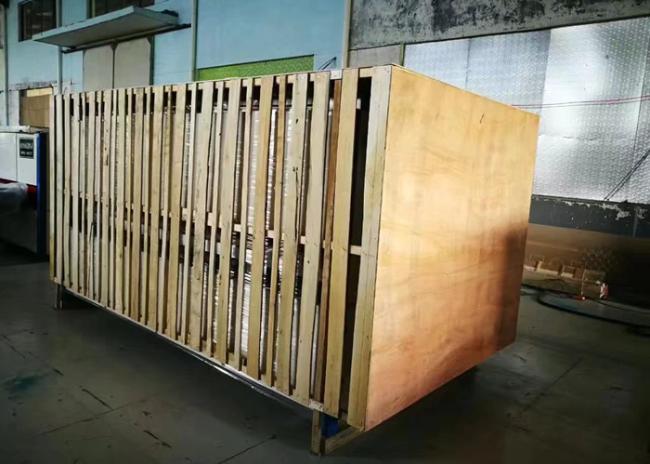

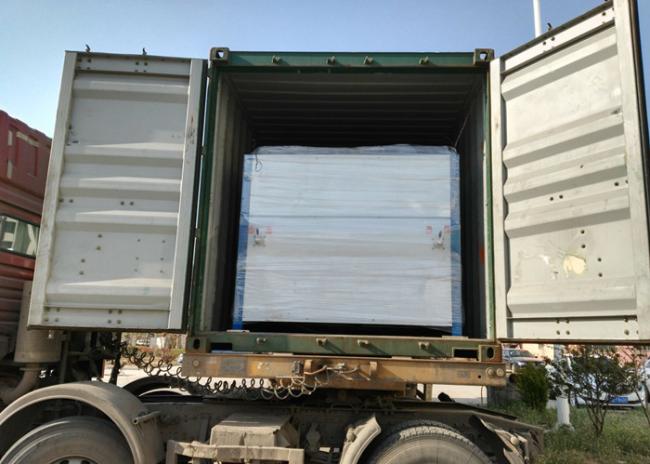

6.Packing & Delivery
