YPG Stainless Steel Pressure Spray Dryer For Potassium Fluor Protein
CE ISO Certificated Stainless Steel Spray Dryer for Potassium Fluor, Protein, Aluminium Chloride
About YPG Spray Dryer
The principle of its atmization is that liquid which gets high pressure(1-10Mpa)from high-pressure pump transfers pressure into kinetic energy when it passes through the spray nozle,and is sprayed out at high speed to become droplets.
The Advantages of YPG Spray Dryer
- Easy operation,maintenance and replacement;
- Larger granularities etc.
- Smaller atomization power
Application:
- Instant milk powder,
- Cocoa powder
- Coffee
- Granule disperse
- Dyes
- Propyl methanol
- Sodium lauricsulfate

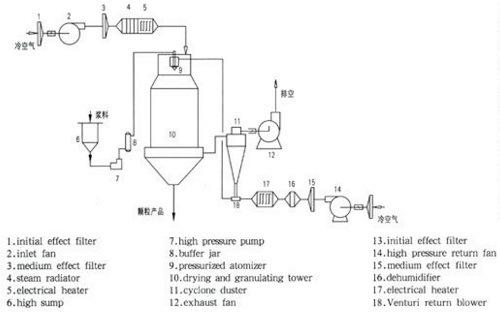

Flow Chart of YPG Spray Dryer
Technical Parameter
| Model | Inlet Temp. | Water Evaporation (kg/h) |
Atomization Pressure (Mpa) |
Diameter/Height (m) |
| YPG-1600 | 140-300°C | 20-30 | 0.8-2 | 1.6/9.8 |
| YPG-2000 | 140-300°C | 50-70 | 1-2.5 | 2.0/12.1 |
| YPG-2800 | 140-300°C | 120-180 | 1.5-3 | 2.8/16 |
| YPG-5200 | 140-300°C | 800-1000 | 1.5-4 | 5.2/29 |
