Fanqun Fluid Bed Granulator 150-300kg/H For Food Product
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Fluid Bed Dryer for Food Product
Product Description
Customer Question & Answer
Ask something for more details
About XF Fluid Bed
XF fluid bed system consists of air filter, heater, fluid bed, feeder, cyclone, bag filter, high pressure centrifuge fan, operation table and so on. Based on different requirement of different products, either cyclone or bag filter or both could be chosen.
Principle of work
Products are fed into fluidized-bed drier through feeder. Fresh air after filtering and heating is conveyed to the bottom of fluid bed by fan and contacts with solid raw products on distributing plate, There fluidizing and heating exchange are conducted between air and products. Dry products are discharged from outlet to cyclone and bag filter from the top of fluid bed.
Heat source
Steam, electricity or hot air furnace can be used.
Applications
- pharmaceutical product
- chemical
- food
- pressing tablet
- resin
- citric acid
- maize embryo
- animal food

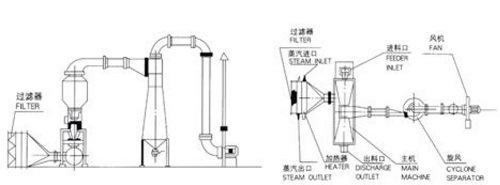

Flow Chart
![Fluid Bed Dryer for Food Product]()
Note: customized design is available
XF fluid bed system consists of air filter, heater, fluid bed, feeder, cyclone, bag filter, high pressure centrifuge fan, operation table and so on. Based on different requirement of different products, either cyclone or bag filter or both could be chosen.
Principle of work
Products are fed into fluidized-bed drier through feeder. Fresh air after filtering and heating is conveyed to the bottom of fluid bed by fan and contacts with solid raw products on distributing plate, There fluidizing and heating exchange are conducted between air and products. Dry products are discharged from outlet to cyclone and bag filter from the top of fluid bed.
Heat source
Steam, electricity or hot air furnace can be used.
Applications
- pharmaceutical product
- chemical
- food
- pressing tablet
- resin
- citric acid
- maize embryo
- animal food
Flow Chart
| Model | Bed Area (m2) |
Fan Power (kw) |
Drying Capacity (kg/hr) |
Product Temp. (°C) |
| XF-20 | 0.5 | 11 | 20-25 | 40-60 |
| XF-30 | 1.0 | 18.5 | 30-45 | 40-60 |
| XF-50 | 2.0 | 30 | 55-90 | 40-60 |
| XF-150 | 6.0 | 67 | 150-300 | 40-60 |
Note: customized design is available
