8 Layers Vacuum Industrial Drying Oven 2100KG With 32mm Tray
Ce ISO ASME Certificated Vacuum Dryer for Pharma Chemical, Food Product, Carbon Black, C
Product Description
Customer Question & Answer
About YZG/FZG Vacuum Dryer
Vacuum dryer is to let the raw material be dried at vacuum condition heating and drying. It uses vacuum pump to damp and make the working chamber form vacuum status. Therefore the dry speed is quickened and the working efficiency is raised.
Features
1. The higher dry speed can be achieved at lower temperature and the heating can be utilized fully.
2. Unstable or thermal sensitive raw materials can be dried at lower temperature.
3. Raw materials that contain solvent or the solvent to be recovered can be dried.
4. The treatment of disinfection can be implemented before drying. Any impurities can not be mixed into it during the period of drying.
5. The drier belongs to static vacuum one. Therefore the shape of raw material to be dried can not be damaged.
Application
- Pharmaceutical product
- Chemical product
- Foodstuff
- Herb
Flow Chart
Technical Parameter
| Model | Overall Dimension (mm) | Layers of Racks | Tray size (mm) | Operation Pressure (Mpa) | Weight (kg) |
| FZG-15 | 1513X1924X2060 | 8 | 32 | <0.784 | 2100 |
| YZG-800 | 1700X1040X1335 | 4 | 8 | <0.784 | 600 |
| YZG-1000 | 1693X1190X1500 | 6 | 12 | <0.784 | 800 |
| YZG- 1400 | 2386X1675X1920 | 8 | 32 | <0.784 | 1400 |
Photo of Dryer
1. YZG Dryer
2. FZG Dryer

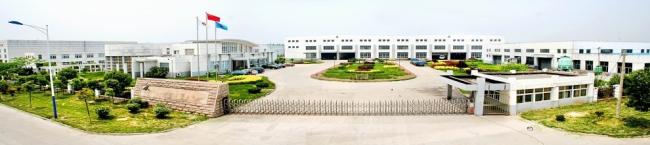

About Fanqun
-Leader of R&D in dryer system in China
-TOP 3 in China for dryer design and manufacture
- 28 years customized capability in dryer system technology
- Export to the US, Germany, Chile, Russia, Poland, Japan, South Korea, Mexico, Thailand, India, Malaysia,Pakistan, South Africa etc. over 20 contries in total.
- 368 working staffs, including 15 R&D engineers, 33 mechanical engineers and 15 electrical engineers.
- 72,000m2 plant area including 20,000m2 office area and 5 workshops
-Famous trademark in Jiangsu Province
- Design&Manufacturing as per EN, NEMA, ASME Chinese standard.
- 12 month warranty upon goods delivery
- Site supervision for installation and commissioning as an option
- Remote diagnose for trouble shooting.
- Certifications: ASME, CE, ISO9001, ISO14001, HSE, NB, Famous Brand of Jiangsu etc.

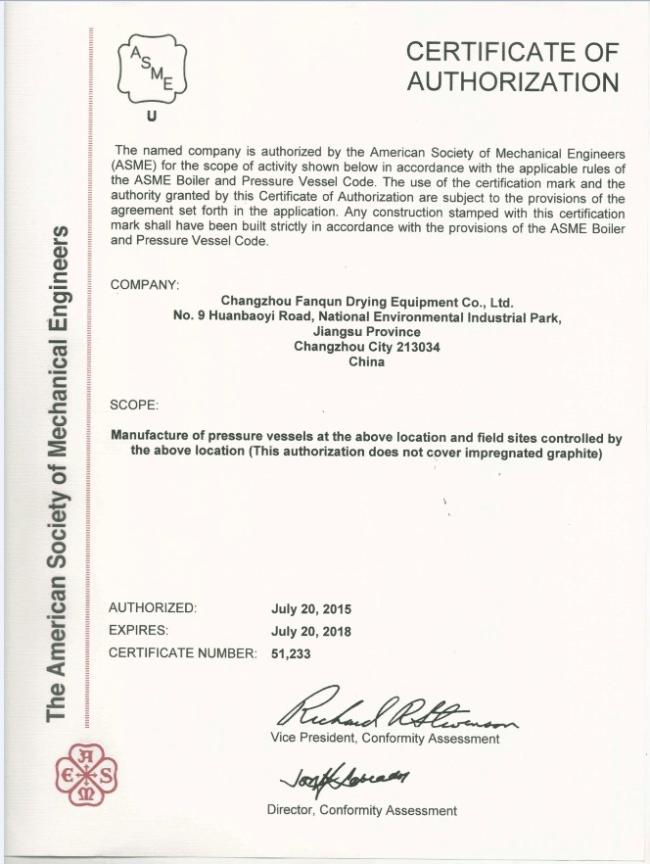

Certifications
ASME CE ISO9001
Famouse Trademark in Jiangsu Province
