CE ISO Parallel Flow Industrial Drying Oven 1693X1190X1500mm
Vacuum Oven For Chemicals
Product Description
Customer Question & Answer
About YZG/FZG Vacuum Dryer
Vacuum dryer is to let the raw material be dried at vacuum condition heating and drying. It uses vacuum pump to damp and make the working chamber form vacuum status. Therefore the dry speed is quickened and the working efficiency is raised.
Features
1. The higher dry speed can be achieved at lower temperature and the heating can be utilized fully.
2. Unstable or thermal sensitive raw materials can be dried at lower temperature.
3. Raw materials that contain solvent or the solvent to be recovered can be dried.
4. The treatment of disinfection can be implemented before drying. Any impurities can not be mixed into it during the period of drying.
5. The drier belongs to static vacuum one. Therefore the shape of raw material to be dried can not be damaged.
Application
- Pharmaceutical product
- Chemical product
- Foodstuff
- Herb

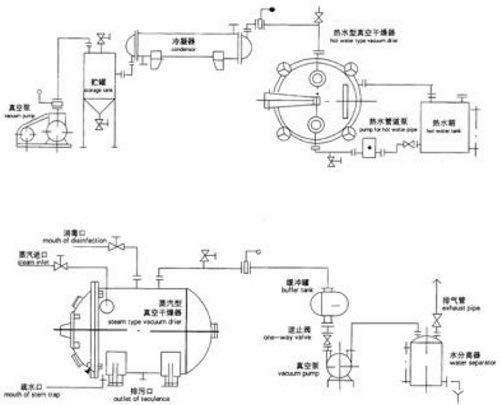

Flow Chart
Technical Parameter
| Model | Overall Dimension (mm) |
Layers of Racks | Tray size (mm) |
Operation Pressure (Mpa) |
Weight (kg) |
| FZG-15 | 1513X1924X2060 | 8 | 32 | <0.784 | 2100 |
| YZG-800 | 1700X1040X1335 | 4 | 8 | <0.784 | 600 |
| YZG-1000 | 1693X1190X1500 | 6 | 12 | <0.784 | 800 |
| YZG- 1400 | 2386X1675X1920 | 8 | 32 | <0.784 | 1400 |
Photo of Dryer

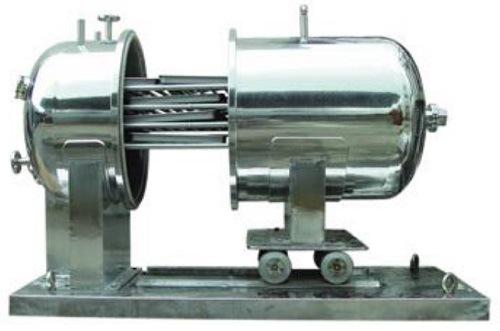

1. YZG Dryer

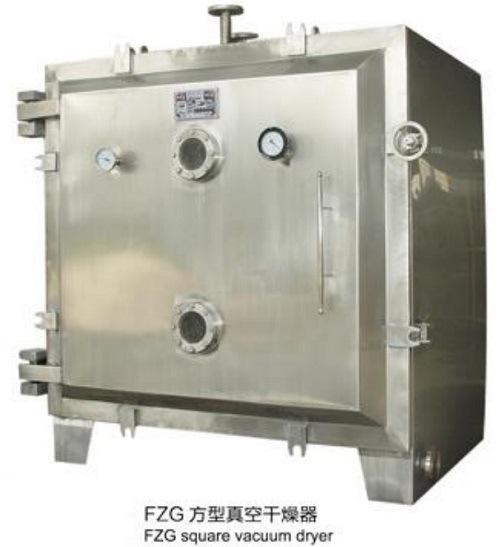

2. FZG Dryer
