Paste Harrow Vacuum Rake Dryer Stainless Steel 304 Frame
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Customer Question & Answer
Ask something for more details
About Rake Dryer
Rake Dryer is a kind of mixing dryer at low speed by indirect heating with product and dryer shaft under vacuum status.
Steam or hot water will be conveyed into the shaft and jacket, wet product cotact with shaft while running and be dried.
Constructions & Features

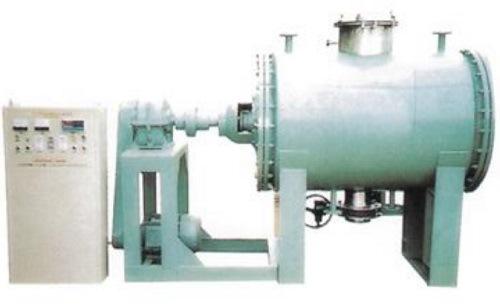

This equipment is composed of shell, jacket, harrow teeth, rotary shaft, heads, seals, bearing, motor reducer, discharging device and support etc. It has the following features:
![Harrow Dryer for Paste Drying]()
- The dryer is compact in structure with large heat conducting area
- Small occupied space
- Less steam consumption and less dust.
- Blades have self cleaning function.
- Easy to operate
Application
- Slurry
- Liquid product
- Sludge
- Waste slurry
Techinical Parameter of Rake Dryer
![Harrow Dryer for Paste Drying]()
Rake Dryer is a kind of mixing dryer at low speed by indirect heating with product and dryer shaft under vacuum status.
Steam or hot water will be conveyed into the shaft and jacket, wet product cotact with shaft while running and be dried.
Constructions & Features
This equipment is composed of shell, jacket, harrow teeth, rotary shaft, heads, seals, bearing, motor reducer, discharging device and support etc. It has the following features:
- The dryer is compact in structure with large heat conducting area
- Small occupied space
- Less steam consumption and less dust.
- Blades have self cleaning function.
- Easy to operate
Application
- Slurry
- Liquid product
- Sludge
- Waste slurry
Techinical Parameter of Rake Dryer
| Model | Volume (L) |
Speed (rpm) |
Power (kw) |
Designed Pressure (In the core) |
Weight (kg) |
| PZG-200 | 200 | 10 | 1.5 | -0.1 | 800 |
| PZG-500 | 500 | 10 | 3 | -0.1 | 1500 |
| PZG-1000 | 1000 | 10 | 7.5 | -0.1 | 2000 |
| PZG-2000 | 2000 | 7 | 11 | -0.1 | 2800 |
| PZG-3000 | 3000 | 7 | 15 | -0.1 | 3800 |
| PZG-5000 | 5000 | 5 | 18.5 | -0.1 | 6500 |
