24V IP67 Waterproof Brush Motor 63mm OD For 1m Submerged Aquaculture
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
9-12 working days
Brand:
SECORE
Product Description
24V IP67 Waterproof Brush Motor 63mm Aquaculture Motor 1M Submerged
Main specification cases:
Model Number: DC-SC63120
Voltage range: DC 18V, 24V, customized 220V, 230V
High Speed: 4000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise
High Speed: 4000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise
| Model number | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | Lifetime | ||||
| Nominal constant | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |||
| Volts | ±10% r/min | mA | ±10% r/min | mA | N.m | kg.cm | H | |
| SC-63120 | 24V | 4000 | 650 | 3200 | 2800 | 0.2 | 2.04 | 2000 |

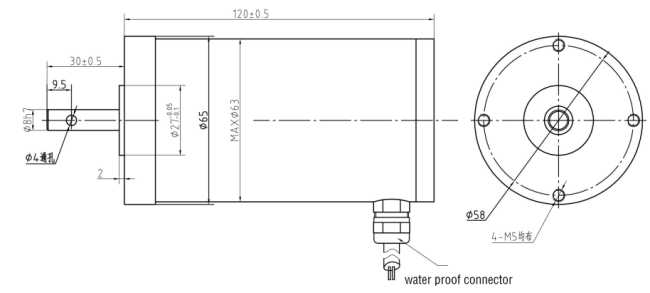

Motor dimensions

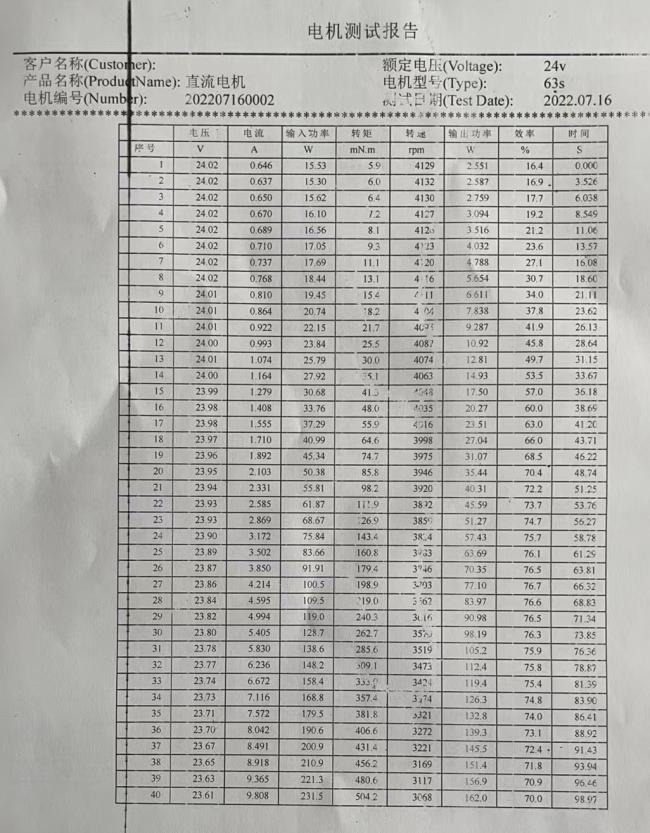

Test report of waterproofing motor SC63120 :
What specifications are needed for the motor?
- you must compute the size of the motor, how to install it (how to fix it in the system);
- the power, start & rated torque and speed of the motor are required;
- the industrial environment that the motor operates in must also be considered: different environment (explosion, humidity, corrosion, high and low temperatures, etc.) may have different design.
For harsh environments, like a waterproof, dustproof and shockproof enclosure needs to be reviewed, please contact us for further details.
