High Torque 15KG Robot Gear Motor , 12V 24V Brushless EC Motor 36mm
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-10 working days
Brand:
SECORE
Product Description
High Torque 15KG Robot Gear Motor Brushless 12V24V EC Motor 36mm
Secore Planetary Brush DC Gear Motor 3650-36GB parameter:
| Operating range | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Reducer | |||||||
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | Ratio | length | New weight | |
| VDC | VDC | ±10% r/min | mA | ±10% r/min | A | kg.cm | W | kg.cm | A | 1:00 | mm | kg |
| 6V-15V | 12 | 1600 | 232 | 1300 | 1.3 | 0.7 | 10 | 3.2 | 4 | 3.7 | 26.6 | 0.666 |
| 6V-15V | 1200 | 232 | 1000 | 1.3 | 1 | 10 | 4.6 | 4 | 5.2 | |||
| 6V-15V | 430 | 232 | 360 | 1.3 | 3 | 10 | 10.7 | 4 | 14 | 32.6 | 0.735 | |
| 6V-15V | 230 | 232 | 195 | 1.3 | 5 | 10 | 20.7 | 4 | 27 | |||
| 6V-15V | 120 | 232 | 100 | 1.3 | 9 | 10 | 38 | 4 | 50 | |||
| 6V-15V | 85 | 232 | 75 | 1.3 | 13 | 10 | 46 | 4 | 71 | 38.7 | 0.8 | |
| 6V-15V | 60 | 232 | 52 | 1.3 | 18 | 10 | 65 | 4 | 100 | |||
| 6V-15V | 45 | 232 | 40 | 1.3 | 20 | 10 | 90 | 4 | 139 | |||
| 6V-15V | 32 | 232 | 24 | 1.3 | 26 | 10 | 110 | 4 | 189 | 44.4 | 0.875 | |
| 6V-15V | 23 | 232 | 17 | 1.3 | 36 | 10 | 150 | 4 | 263 | |||
| 6V-15V | 16 | 232 | 12 | 1.3 | 51 | 10 | no stall | 4 | 369 | |||
| 6V-15V | 12 | 232 | 9 | 1.3 | 71 | 10 | 4 | 516 | ||||
| 6V-15V | 8 | 232 | 6 | 1.3 | 100 | 10 | 4 | 721 | ||||
| 15V-28V | 24 | 1600 | 130 | 1300 | 0.67 | 0.7 | 10 | 3.2 | 4 | 3.7 | 26.6 | 0.666 |
| 15V-28V | 1200 | 130 | 1000 | 0.67 | 1 | 10 | 4.6 | 4 | 5.2 | |||
| 15V-28V | 430 | 130 | 360 | 0.67 | 3 | 10 | 10.7 | 4 | 14 | 32.6 | 0.735 | |
| 15V-28V | 230 | 130 | 195 | 0.67 | 5 | 10 | 20.7 | 4 | 27 | |||
| 15V-28V | 120 | 130 | 100 | 0.67 | 9 | 10 | 38 | 4 | 50 | |||
| 15V-28V | 85 | 130 | 75 | 0.67 | 13 | 10 | 46 | 4 | 71 | 38.7 | 0.8 | |
| 15V-28V | 60 | 130 | 52 | 0.67 | 18 | 10 | 65 | 4 | 100 | |||
| 15V-28V | 45 | 130 | 40 | 0.67 | 20 | 10 | 90 | 4 | 139 | |||
| 15V-28V | 32 | 130 | 24 | 0.67 | 26 | 10 | 110 | 4 | 189 | 44.4 | 0.875 | |
| 15V-28V | 23 | 130 | 17 | 0.67 | 36 | 10 | 150 | 4 | 263 | |||
| 15V-28V | 16 | 130 | 12 | 0.67 | 51 | 10 | no stall | 4 | 369 | |||
| 15V-28V | 12 | 130 | 9 | 0.67 | 71 | 10 | 4 | 516 | ||||
| 15V-28V | 8 | 130 | 6 | 0.67 | 100 | 10 | 4 | 721 | ||||

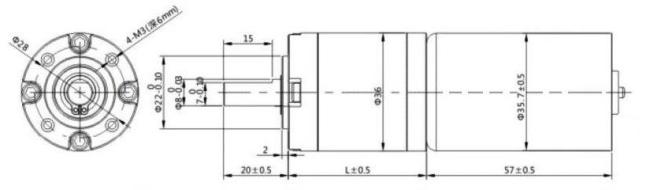

Outline drawing
When suggest a planetary gearbox?
One of the main features of planetary gearboxes is coaxial assembly. This type of assembly means that the planetary gearbox is compact. The advantages of planetary gearboxes include their low backlash, high efficiency, compact size, and high torque-to-weight ratio. On the other hand, their complex and expensive designs require specialized maintenance. A planetary gearbox is a gearbox in which the input and output shafts are aligned. Planetary gearboxes are used to transmit maximum torque in the most compact form known as torque density.
