Micro 3v 6v 12v Flat Gear Motor For Stage Light, 6V 0.5Nm Gear DC Motor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-12 working days
Brand:
SECORE
Product Description
Micro 3v 6v 12v Flat Gear Motor For Stage Light, 6V 0.5Nm Gear Dc Motor
Gear motor specification for reference:
1. Voltage: 6V DC
2. Free load speed: 7.5±12% rpm
3. Free load current: 90mA max
4. Rated speed: 6±12% rpm
5. Rated current: 210mA
6. Rated torque: 5kg.cm min
7. Stall current: 1000mA max
8. Stall torque: 24.5kg.cm min
9. Stall allowed: Not
10. Gear reducer length: 49.2mm
11. Application: valve control, locker motor, password door motor, carbinet locking motor etc
Motor parameters without gearbox:
| Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | POWER | TORQUE | CURRENT | |
| ±10% r/min | mA | ±10% r/min | mA | g.cm | W | g.cm | A | |
| 3 | 2700 | 30 | 2230 | 160 | 12 | 0.27 | 60 | 0.68 |
| 5 | 3100 | 26 | 2540 | 120 | 12.6 | 0.27 | 70 | 0.54 |
| 6 | 2700 | 20 | 2180 | 84 | 11.6 | 0.26 | 60 | 0.35 |
| 12 | 4000 | 22 | 3200 | 125 | 13.5 | 0.29 | 75 | 0.46 |
1. The above motor parameters are for reference only, please base on actual sample data,
2. Motor parameters and output shaft size can be customized according to requirements.
3. Output torque = motor torque * reduction ratio * gear efficiency. Output speed = motor speed / reduction ratio.

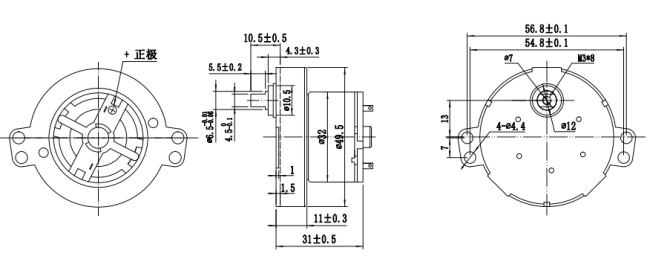

Mounting dimensions:
