Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-12 working days
Brand:
SECORE
Product Description
Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Gearbox specification:
| Gear ratio | 32, 40.5, 54, 68 | 111, 135, 185, 225 | 256, 312, 370, 450 | |||
| Gearbox length ( mm ) | 12 | 12 | 12 | |||
| Rated torque ( N.m ) | 2 | 6 | 8 | |||
| Instantaneous torque ( N.m ) | 6 | 18 | 24 | |||
| Efficiency | 73% | 65% | 59% | |||
Motor parameters:
| Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | POWER | TORQUE | CURRENT | |
| ±10% r/min | mA | ±10% r/min | mA | g.cm | W | g.cm | A | |
| 6 | 3000 | 35 | 2600 | 130 | 15 | 0.78 | 100 | 0.5 |
| 12 | 6000 | 60 | 5500 | 150 | 15 | 1.8 | 135 | 1 |
| 24 | 5500 | 30 | 4900 | 110 | 20 | 2.65 | 150 | 0.56 |
| 24 | 7500 | 50 | 6700 | 120 | 15 | 2.9 | 230 | 0.9 |
1. The above motor parameters are for reference only, please base on actual sample data,
2. Motor parameters and output shaft size can be custom made according to application requests.
3. Output torque = motor torque * reduction ratio * gear efficiency. Output speed = motor speed / reduction ratio.

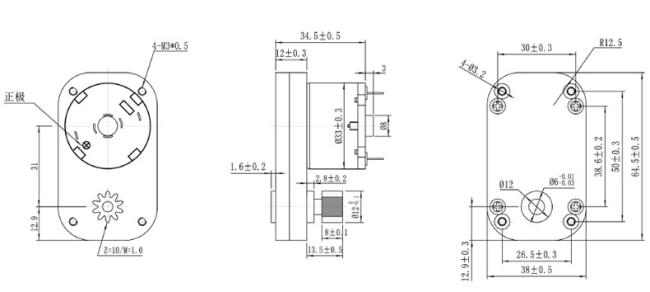

Mounting dimensions:
