6v Square Flat Gear Motor 1Nm Worm Gear Motor For Vending Robot
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
15-20 working days
Brand:
SECORE
Product Description
6v Square Flat Gear Motor 1Nm Worm Gear Motor For Vending Robot
Secore DC2032/180 Brush Motor Main parameters for reference:
| MODEL# | Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | POWER | ||
| ±10% r/min | mA | ±10% r/min | mA | g.cm | g.cm | A | W | ||
| DC2032 | 12 | 12500 | 100 | 10400 | 500 | 35 | 210 | 2.5 | 6.7 |
| 6 | 7000 | 90 | 5500 | 450 | 20 | 85 | 1.9 | 1.5 | |
Motor with gear reducer main parameters for reference:
| MODEL# | DC38-2964 | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 12V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 131 | 95 | 77 | 1.5 | 8 |
| 756 | 17 | 14 | 8 | 45 | |
| 1012 | 12 | 10 | 10 | 50 | |
| 1519 | 7.9 | 6.5 | 10 | 80 |
| MODEL# | DC38-2964 | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 6V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 131 | 53 | 42 | 1.2 | 8 |
| 756 | 9 | 7 | 8 | 35 | |
| 1012 | 7 | 5 | 10 | 50 | |
| 1519 | 4.6 | 3.6 | 10 | 80 |

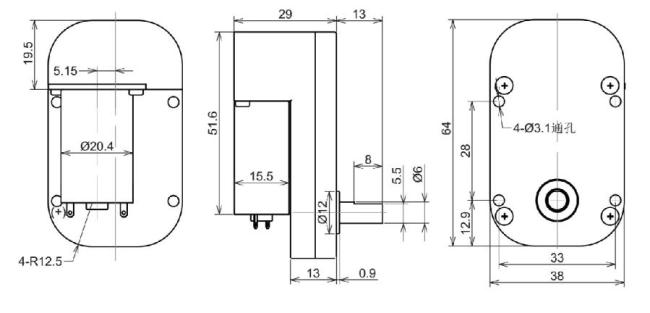

Motor mounting sizes and shafts options:
