6V 12V Square Flat Worm Gear Motor Curtain Lifting Gear Motor 0.3Nm Torque
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
15-20 working days
Brand:
SECORE
Product Description
6V 12V Square Flat Worm Gear Motor Curtain Lifting Gear Motor 0.3Nm Torque
Secore DC2430/370 Brush Motor Main parameters for reference:
| MODEL# | Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | POWER | ||
| ±10% r/min | mA | ±10% r/min | mA | g.cm | g.cm | A | W | ||
| DC2430 | 6 | 5500 | 50 | 4700 | 320 | 25 | 190 | 2.1 | 2.7 |
| 12 | 5300 | 17 | 4400 | 100 | 25 | 150 | 0.65 | 2 | |
Motor with gear reducer main parameters for reference:
| MODEL# | DC2430-32GM | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 6V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 98 | 54 | 48 | 1.5 | 6 |
| 119 | 45 | 38 | 1.8 | 8 | |
| 206 | 25 | 23 | 3 | 12 | |
| 322 | 16 | 15 | 4 | 16 | |
| 534 | 10 | 9 | 6 | 24 |
| MODEL# | DC2430-32GM | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 12V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 98 | 54 | 45 | 1.5 | 6 |
| 119 | 44 | 36 | 1.8 | 8 | |
| 206 | 25 | 21 | 3 | 12 | |
| 322 | 16 | 14 | 4 | 16 | |
| 534 | 10 | 8 | 6 | 24 |

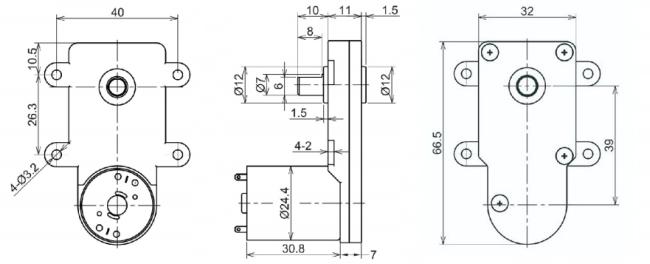

Motor mounting sizes and shafts options:
Customize your motor application:
Advise your expected sizes or max physical sizes, make sure the working voltage, speed, torque, working conditions etc to finalize the model options. Brush motor, brushless motor, encoder is optional to equip.
