37mm 24V Essentric Gear Motor 60rpm 1.5kg Torque Gear Brush Motor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-12 working days
Brand:
SECORE
Product Description
37mm 24V Essentric Gear Motor 60rpm 1.5kg Torque Gear Brush Motor
Gearbox specification:
| MODEL# | Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | POWER | ||
| ±10% r/min | mA | ±10% r/min | mA | gf.cm | gf.cm | A | W | ||
| DC2736 | 24 | 7700 | 38 | 6700 | 210 | 50 | 380 | 1.3 | 7.5 |
Motor parameters:
| MODEL# | DC2736-37GM | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 24V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 25 ( 21mm ) | 308 | 268 | 1.5 | 6.0 |
| 56 ( 23.5mm ) | 138 | 1200 | 2.0 | 10.0 | |
| 88 ( 26mm ) | 88 | 76 | 3.0 | 15.0 | |
| 151 ( 26mm ) | 51 | 44 | 4.0 | 20.0 | |
| 268 ( 26mm ) | 29 | 25 | 6.0 | 30.0 | |
| 407 ( 26mm ) | 19 | 16 | 8.0 | 40.0 |
1. The above parameters are for reference only, specific data will be based on actual sampling;
2. Motor parameters and output shaft size can be custom made according to application requests, brushless motor, encoder optional;
3. Output torque = motor torque * reduction ratio * gear efficiency. Output speed = motor speed / reduction ratio.

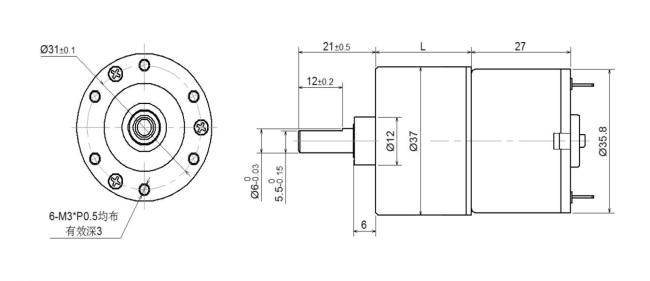

Mounting dimensions:
