12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-12 working days
Brand:
SECORE
Product Description
12v 32mm Factory Dc Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
Gearbox specification:
| MODEL# | Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | POWER | ||
| ±10% r/min | mA | ±10% r/min | mA | gf.cm | gf.cm | A | W | ||
| DC2837 | 12 | 13000 | 200 | 11260 | 1160 | 90 | 350 | 6.5 | 19.7 |
| 24 | 7800 | 90 | 6100 | 330 | 90 | 290 | 1.2 | 7.2 | |
Motor parameters:
| MODEL# | DC2837-32GM | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 12V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 5.8 ( 15mm ) | 2200 | 1920 | 0.4 | 2.9 |
| 17 ( 17.7mm ) | 750 | 650 | 1.0 | 7.8 | |
| 52 ( 20.4mm ) | 250 | 310 | 3.0 | 21.0 | |
| 105 ( 23.1mm ) | 120 | 105 | 5.0 | 38.0 | |
| 278 ( 25.8mm ) | 45 | 40 | 6.0 | 45.0 | |
| 465 ( 25.8mm ) | 28 | 24 | 8.0 | 60.0 | |
| 732 ( 28.5mm ) | 18 | 15 | 8.0 | 80.0 | |
| 1397 ( 28.5mm ) | 9 | 7.9 | 8.0 | 80.0 |
| MODEL# | DC2837-32GM | Free load speed | Rated speed | Rated torque | Stall torque |
| Voltage | 24V | R/Min | R/Min | kg.cm | kg.cm |
| Gear ratio | 5.8 ( 15mm ) | 1300 | 1050 | 0.4 | 1.5 |
| 17 ( 17.7mm ) | 450 | 350 | 1.0 | 4.2 | |
| 52 ( 20.4mm ) | 150 | 115 | 3.0 | 7.0 | |
| 105 ( 23.1mm ) | 70 | 55 | 5.0 | 21.0 | |
| 278 ( 25.8mm ) | 28 | 22 | 5.0 | 50.0 | |
| 465 ( 25.8mm ) | 17 | 13 | 8.0 | 60.0 | |
| 732 ( 28.5mm ) | 11 | 8 | 8.0 | 80.0 | |
| 1397 ( 28.5mm ) | 5.5 | 4.2 | 8.0 | 80.0 |

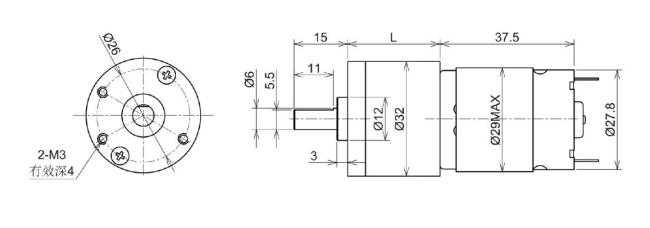

Mounting dimensions:
Application cases:
