3.7V 3000rpm Micro Brush Motor , Low Voltage Brush DC Motor For Bottle Opener
Price:
Negotiated The Price
MOQ:
200
Delivery Time:
7-12 working days
Brand:
SECORE
Product Description
3.7V 3000rpm Micro Brush Motor, Low Voltage Brush Dc Motor For Bottle Opener
Secore brush dc motor DC1723
- Rated voltage: DC3.7V, 12V or per request
- The direction of rotation: CW/CCW
- No-load speed: 4000 rpm
- No-load current: 30mA
| MODEL# | Voltage VDC |
NO LOAD | AT LOAD | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | POWER | TORQUE | CURRENT | ||
| ±10% r/min | mA | ±10% r/min | mA | g.cm | W | g.cm | mA | ||
| DC1723 | 3.7 | 4000 | 30 | 3150 | 140 | 10 | 0.5 | 50 | 600 |
| 12 | 10500 | 20 | 8400 | 120 | 10 | 1.44 | 50 | 600 | |
Low voltage permanent magnet DC motor applies for very various field, such as smart home, personal care, household appliances, intelligent devices, kids toy, office automation equipment, precision instrument, kids toys,electric water valves, robots, financial equipment, audio and visual equipment, industrial automation and secure, banking and vending system, home and office automation, automatic door system, medical device and so on.

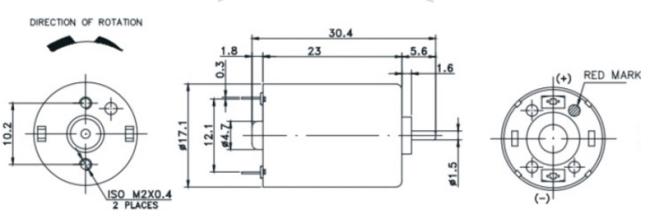

Mounting sizes:

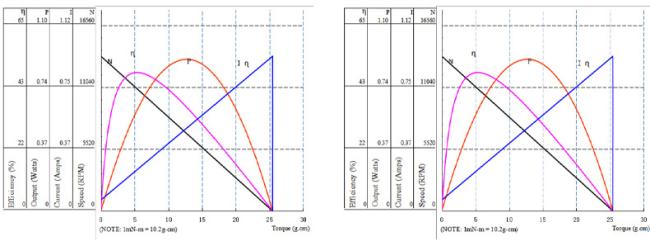

Performance curve:
