Fan Blower Outer Rotor BLDC Motor With Housing 55mm, 50W 3200rpm

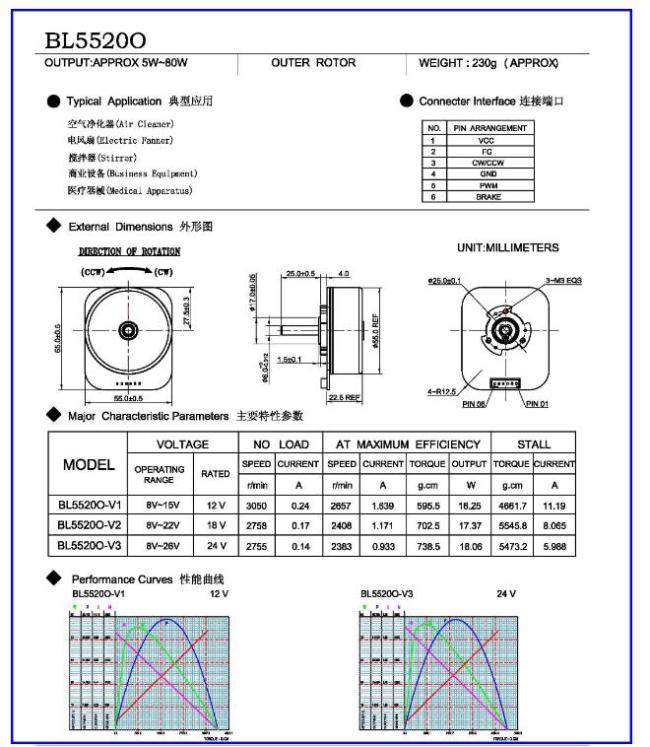

Product specification:

1. Structure: Outrunner BLDC Motor

2. Size: Dia55*L20mm

3. Shaft Dia: 6mm

4. Certification: ROHS

5. Weight: 220gram

6. Endplay: 0.3mm Max

7. Lifetime: 10000h min

8. Phase: 3

9. Rotation: CCW (viewed from the output shaft)

10. Ball bearings on both sides, Class B winding wires

11. The shaft length, shape, can be custom made

12.Rated voltage: 24V

13. 3200RPM 50W

14. With hall sensors and driver, speed control board available

The advantages of brushless motors:

1. They can operate at higher speeds (up to 100,000 rpm compared to 20,000 rpm for brushed motors).

2. They have a longer service life (over 10,000 hours of operation)

3. They are more reliable and efficient.

4. There are no wearing parts except for the bearings, which reduces maintenance operations.

5. The fact that brushless motors are able to operate at very high speeds makes them particularly suitable for hair dryer, fans, grinders or saws.

6. Brushless motors are systematically equipped with an encoder, a sensor that allows for electronic switching and determination of the rotor position. These motors are therefore perfect for servomotor precision applications.

If there is no suitable specifications, it can be customized according to actual needs.

Motor designer –ANSOFT Finite element analysis

Parts of Typical Application:
