6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
Price:
Negotiable
MOQ:
200
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description
Factory Direct Supply Stage Light Motor 6V 12V 24V Air Valve DC Gear Motor With Spur gearbox

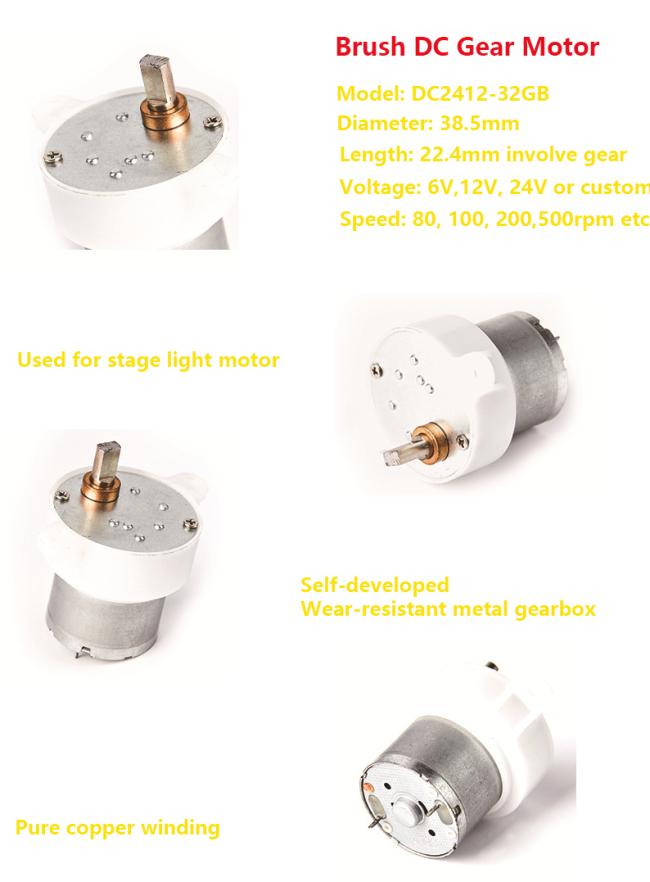

DC1225-32GB Secore Brush dc gear Motor main features:

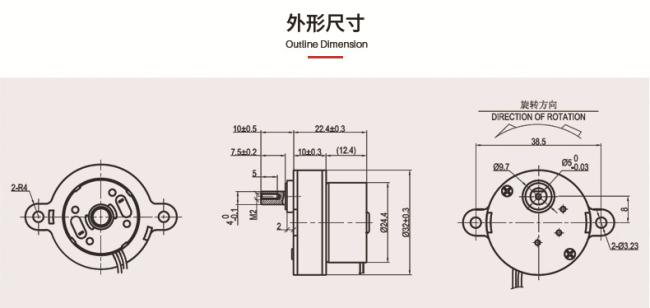

Size: Φ38.5*L22.4mm;
Voltage: DC12V, 6V, 24V, 36V or customized
Speed: 5rpm, 30rpm, or as request
Application: Stage light, Stage rotating led, rotating light, robot, air valve
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Gear length (L) | Matching motor | Motor length (L1) | |||||
| SPEED RPM |
CURRENT mA |
SPEED RPM |
TORQUE mN.m |
CURRENT A |
Output W |
TORQUE mN.m |
CURRENT A |
mm | Model | mm | ||
| DC1225-32GB | 12 | 28 | 22 | 23 | 35.3 | 0.04 | 0.01 | 186.4 | 0.12 | 12.3 | DC1225 | 13.2 |
| DC1225-32GB | 12 | 16 | 40 | 12 | 294 | 0.13 | 0.01 | 980.5 | 0.4 | 12.3 | DC1225 | 13.2 |
Typical Application:
| Industrials | flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc. |
| Electric power tools | electric drill, screwdriver,garden tool and etc. |
| Precision instruments | optics instruments,automatic vending machine, wire-stripping machine and etc. |
| Personal care | tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc. |
| Consumer electronics | camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera, PTZ camera, rotating smart speaker and etc. |
| robots | educational robot, programming robot, medical robot, escort robot and etc. |
