Brushless 10000rpm 75W Hollow Cup Motor For Gardening Trimmer
Price:
Negotiated The Price
MOQ:
500
Delivery Time:
7-10 working days
Brand:
SECORE
Product Description
High Torque Long Life Power Tool Brushless Dc Coreless Motor For Gardening Trimmer
Key Specifications :
Product type: Brushless Coreless Motor
Item name: Brushless DC coreless motor, Coreless BLDC motor
Diameter size: 10mm -60mm as request
work voltage: 3V-48V as request
Free load speed: 2000-1000000rpm as request
power: 3w-700w customizable
| Motor model no. | BLCL2854-1 | BLCL2854-2 | BLCL2854-3 | |
| At Nomimal | ||||
| Nominal voltage | V/DC | 12 | 24 | 36 |
| Nominal speed | RPM | 9210 | 2690 | 10041 |
| Nominal current | A | 6.5 | 0.5 | 11.1 |
| Nominal Torque | mNm | 62.3 | 26.4 | 293.3 |
| Free Load | ||||
| No load speed | RPM | 11600 | 3450 | 12600 |
| No load current | mA | 152 | 46 | 261 |
| At Max Efficiency | ||||
| Max efficiency | % | 87 | 73 | 87 |
| Speed | RPM | 10740 | 2920 | 11730 |
| Current | A | 2.39N.M | 0.4 | 3.9 |
| Torque | mNm | 20.3 | 7.1 | 95.4 |
| At Max output power | ||||
| Max output power | W | 93.7 | 11.6 | 482.5 |
| Speed | RPM | 5760 | 1680 | 6280 |
| Current | A | 15.9 | 1.1 | 27.5 |
| Torque | mNm | 155.6 | 65.7 | 733.3 |
| At stall | ||||
| current | A | 31.6 | 2.1 | 54.5 |
| torque | mNm | 311.2 | 130.8 | 1467 |

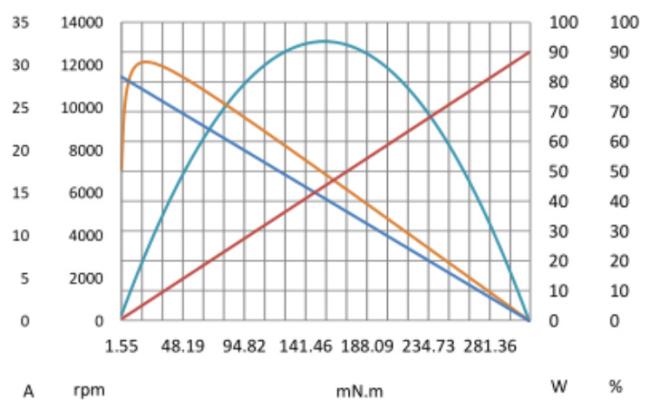

Performance curving
Coreless brushless motor can also operate at very low speeds, due to no cogging torque. At the same time they offer low inertia, allowing higher acceleration rates.
