36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description
6V 25g Lightweight 36mm Long Shaft Thread Gear Motor For Model Aircraft Landing undercarriage and pull rod steering
Main features:
Motor type: Brush commutated DC gear motor
Diameter: Gearbox: 9mm*12mm *37.9mm
|
Volt
|
6V ( 3v to 24v )
|
|
No-Load Speed
|
550rpm
|
|
Rated Speed
|
4000rpm
|
|
Rated Torque
|
400g.cm
|
|
Application
|
Pull rod steering motor, Model Aircraft Landing Gear
|

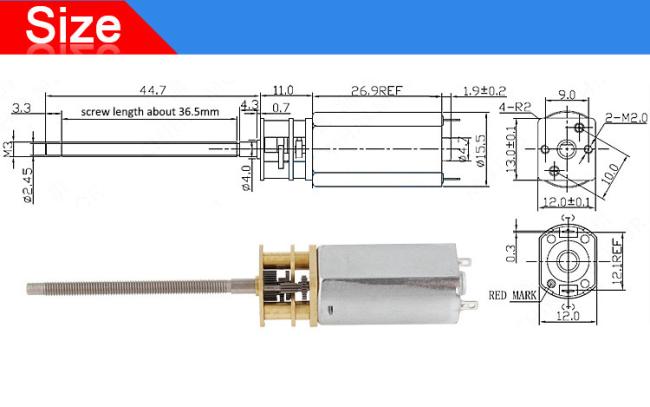

Gear motor dimensions:
| Rated voltage VDC |
No-load speed r/min |
No-load current mA |
Rated torque g.cm |
Rated speed | Rated current mA |
Stall torque kg.cm |
Stall current mA |
| 24 | 450 | 85 | 420 | 340 | 240 | 1.9 | 450 |
| 12 | 225 | 65 | 210 | 170 | 200 | 0.9 | 400 |
| 9 | 170 | 40 | 150 | 125 | 180 | 0.7 | 350 |
| 12 | 700 | 150 | 460 | 590 | 430 | 3 | 3200 |
| 9 | 520 | 130 | 340 | 440 | 390 | 2.5 | 2600 |
| 6 | 350 | 95 | 230 | 295 | 310 | 1.5 | 1800 |
Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.
Explanation of motor related parameters:
1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)
2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)
3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)
4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)
5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)
6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock
(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)
7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
