7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description
12V High Torque Speed Adjustable Reversible Gear Motor, 7N.M Self Lock Worm Geared Motor
Main features:
Motor type: 24V high torque worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm
| Voltage | Rated | V | 24V | |||||||
| Reducer | Ratio | i:1 | 17 | 31 | 50 | 100 | 200 | 290 | 505 | 670 |
| Size L | mm | L58*W40*H27 | ||||||||
| No Load | Speed | rpm | 200 | 110 | 70 | 35 | 17 | 12 | 7 | 5 |
| Current | A | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Rated load | Speed | rpm | 150 | 80 | 50 | 27 | 13 | 9 | 5 | 4 |
| Torque | Kgf.cm | 2.7 | 5 | 8 | 16 | 32 | 46 | 70 | 70 | |
| Current | A | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | |
| Output | W | 4.24 | 4.19 | 4.19 | 4.52 | 4.36 | 4.34 | 3.66 | 2.93 | |
| Stall | Torque | Kgf.cm | 4.4 | 8 | 13 | 25 | 51 | 70 | 70 | 70 |
| Current | A | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | |
| Weight | g | 365 | ||||||||

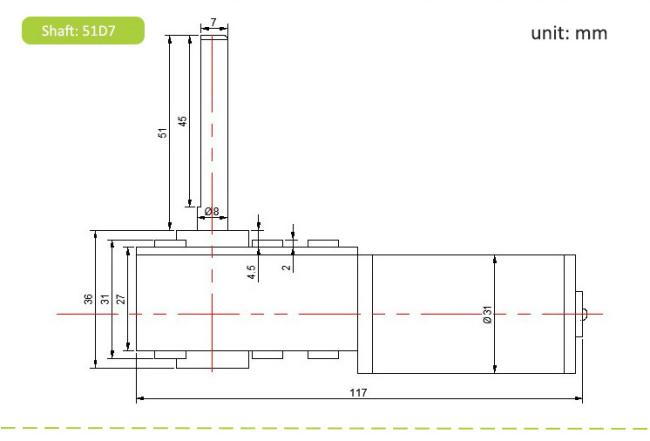

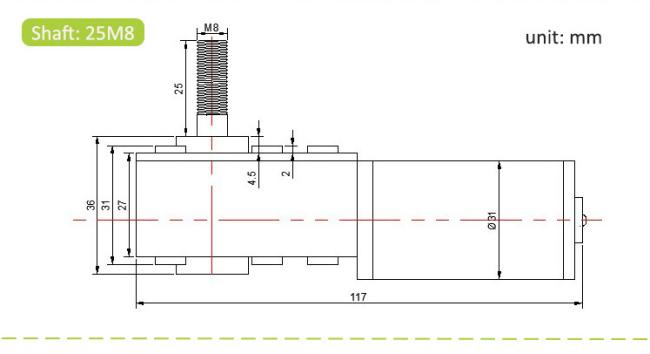

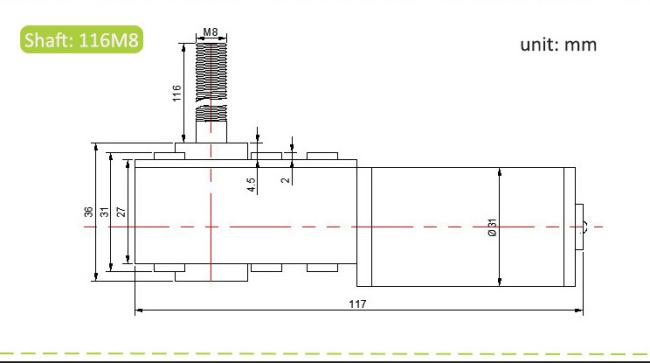

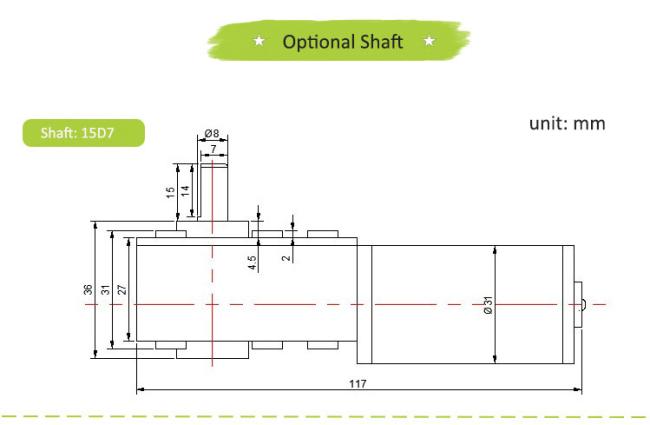

Gear motor dimensions:
