0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description

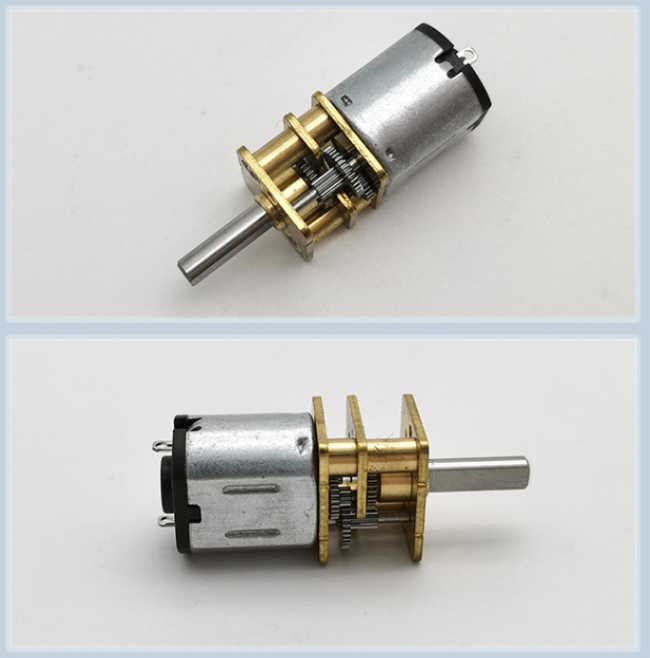

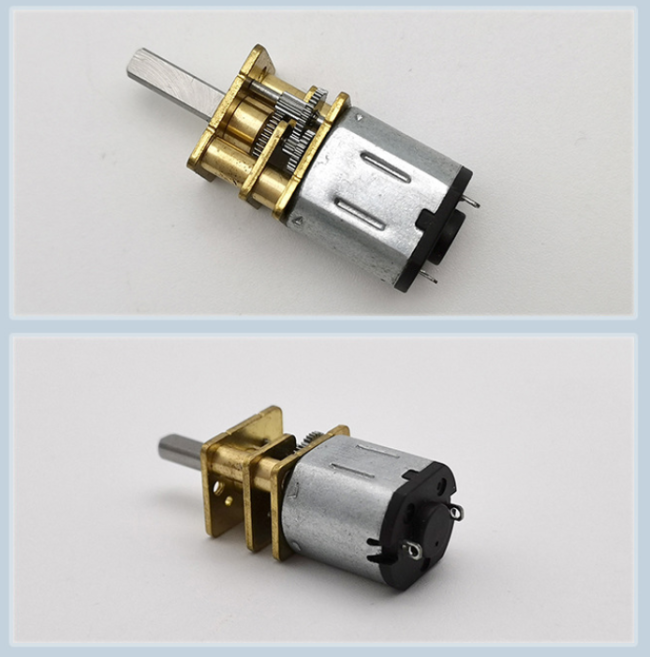

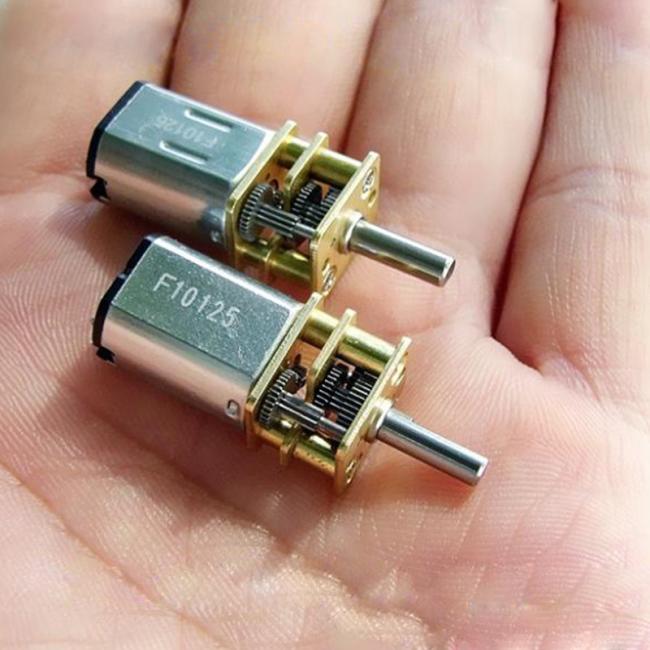

Micro 10*12mm Metal Gear Motor, Bicycle Motor Metal Gear Box Motor
Main features:
Motor type: mini DC gear motor
Diameter: 10*10*12.5MM
| VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE |
RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | ||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | ||
| 4.0-7.0 | 6.0 | 61 | 0.034 | 48 | 0.117 | 46.9 | 477.1 | 0.231 | 203.4 | 2075 | 0.41 |
| 3.0-6.0 | 4.5 | 59 | 0.041 | 47 | 0.146 | 41.5 | 424.3 | 0.203 | 198.1 | 2021 | 0.55 |
Explanation of motor related parameters:
1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)
2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)
3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)
4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)
5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)
6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock
(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)
7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)

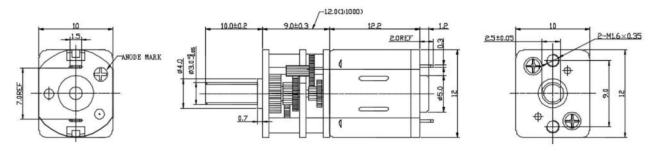

Gear motor dimensions:
