100rpm 75mA Micro Gear Motor 3v 6v 12v 15mm Length ISO For Smart Toy
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description
Micro 15mm Lenght Low Speed Gear Motor 3v 6v12v For Smart Toy
Main features:
Motor type: mini DC gear motor
Diameter: 10*12*15MM
| DC3V | ||||||||
| gear ratio | 10 | 30 | 50 | 100 | 150 | 210 | 298 | 380 |
| no-load Speed ( rpm ) | 750 | 250 | 150 | 75 | 50 | 35 | 25 | 19 |
| no-load Current ( mA ) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| rated Speed ( rpm ) | 580 | 200 | 110 | 60 | 38 | 28 | 20 | 14 |
| rated Torque ( g.cm ) | 30 | 90 | 150 | 300 | 450 | 630 | 900 | 1140 |
| rated Current ( A ) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| stall Torque ( kg.cm ) | 0.1 | 0.24 | 0.4 | 0.8 | 1.2 | 1.7 | 2.3 | 2.9 |
| stall Current ( mA ) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| DC6V | ||||||||
| gear ratio | 10 | 30 | 50 | 100 | 150 | 210 | 298 | 380 |
| no-load Speed ( rpm ) | 1500 | 500 | 300 | 150 | 100 | 75 | 50 | 40 |
| no-load Current ( mA ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| rated Speed ( rpm ) | 580 | 200 | 110 | 60 | 38 | 28 | 20 | 14 |
| rated Torque ( kg.cm ) | 0.1 | 0.24 | 0.4 | 0.5 | 0.8 | 1.7 | 2.3 | 3 |
| rated Current ( A ) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| stall Torque ( kg.cm ) | 0.2 | 0.48 | 0.8 | 1.6 | 2.4 | 3.4 | 3.4 | 3.4 |
| stall Current ( mA ) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| DC12V | ||||||||
| gear ratio | 10 | 30 | 50 | 100 | 150 | 210 | 298 | 380 |
| no-load Speed ( rpm ) | 3000 | 1000 | 600 | 300 | 200 | 140 | 100 | 78 |
| no-load Current ( mA ) | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| rated Speed ( rpm ) | 2300 | 770 | 460 | 230 | 150 | 100 | 77 | 160 |
| rated Torque ( kg.cm ) | 0.2 | 0.6 | 1 | 2 | 3 | 3.4 | 3 | 3 |
| rated Current ( A ) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| stall Torque ( kg.cm ) | 0.2 | 0.48 | 0.8 | 1.6 | 2.4 | 3.4 | 3.4 | 3.4 |
| stall Current ( mA ) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |

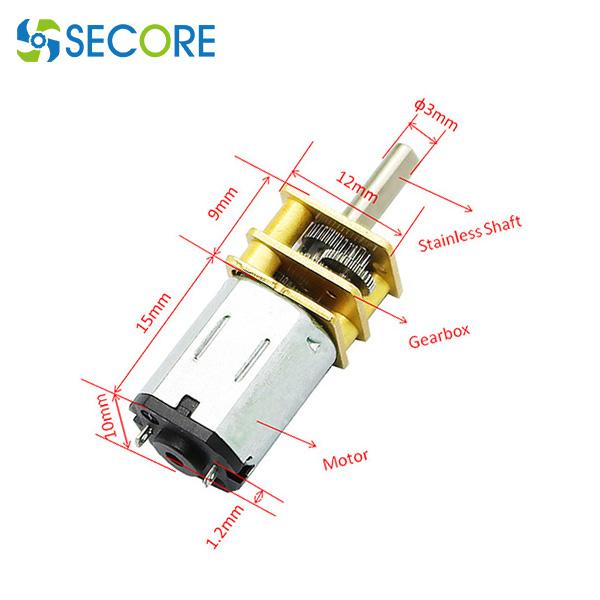

Gear motor dimensions:
Explanation of motor related parameters:
1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)
2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)
3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)
4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)
5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)
6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock
(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)
7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
