120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
12-20 working days
Brand:
SECORE
Product Description
High accuracy Micro16mm DC Gear Motor, 6V Smart Lock Electronic Lock Motor With All Metal Gearbox
Main features:
- Voltage: 6V
- Size: φ12*15.5mm motor --15.5*11mm gearhead
- Shaft diameter: 3mm
- Shaft length: 9.5mm
| VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Weight | |||||
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | |
| VDC | ±10% r/min | A | ±10% r/min | A | kg.cm | W | kg.cm | A | g |
| 6.0 | 340 | 0.048 | 293 | 0.108 | 0.05 | 0.15 | 0.28 | 0.525 | 19 |
| 6.0 | 230 | 0.048 | 200 | 0.123 | 0.09 | 0.18 | 0.42 | 0.525 | 19 |
| 6.0 | 120 | 0.048 | 100 | 0.128 | 0.166 | 0.19 | 0.8 | 0.525 | 19 |
| 6.0 | 80 | 0.048 | 67 | 0.14 | 0.27 | 0.19 | 1.2 | 0.525 | 19 |
| 6.0 | 50 | 0.048 | 29 | 0.255 | 0.46 | 0.14 | 2 | 0.525 | 19 |
| 6.0 | 33 | 0.048 | 26 | 0.142 | 0.59 | 0.16 | 2.9 | 0.525 | 19 |
Motor mounting sizes:

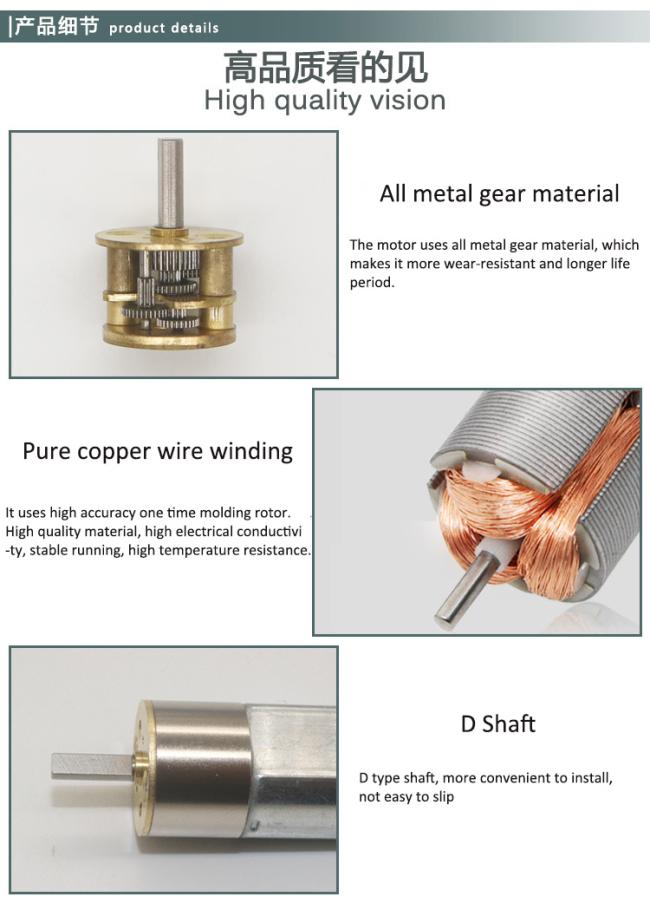

Motor features
All metal gear material
The motor uses all metal gear material, which makes it more wear-resistant and longer life period.
Pure copper wire winding
It uses high accuracy one time molding rotor. High quality material, high electrical conductivity, stable running, high temperature resistance.
D shaft
D type shaft, more convenient to install, not easy to slip.
