0.85A 30rpm Mini DC Gear Motor 12mm Shaft Metal Gear Motor
Customized Mini DC Gear Motor, Smart Home Appliances Tiny Metal Gear Motor
Main features:
- Voltage: 6V or customized
- Size: φ12*18.6mm motor -- optional gearbox length
- Shaft diameter: 3mm
- Shaft length: 12mm
- To be tailored: Output Shaft, motor speed, voltage
| Reduction ration | Length | Reduction ratio | Length |
| 4.0 5.0 | 12.5 | 64 76 90 107 | 19.5 |
| 16 19 23 | 16 | 256 364 428 688 | 23 |
| VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT |
| VDC | ±10% r/min | A | ±10% r/min | A | kg.cm | W | kg.cm | A |
| 3 | 115 | 0.4 | 90 | 0.6 | 0.4 | 1 | 1.4 | 1.4 |
| 5 | 60 | 0.5 | 50 | 0.8 | 1.8 | 1.3 | 8 | 1.2 |
| 8 | 55 | 0.5 | 46 | 0.85 | 3 | 2 | 15 | 2 |
| 12 | 35 | 0.5 | 30 | 0.85 | 5 | 2.5 | 30 | 2 |

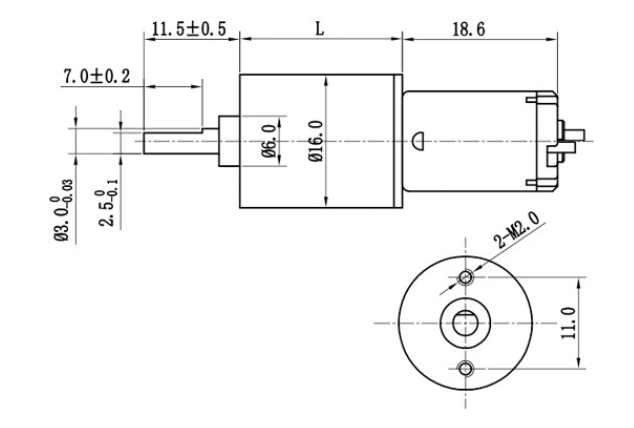

Motor mounting sizes:
How to choose the suitable motor?
1. voltage: determine the working condition of the motor application
2. speed: the revolution per minute you need running at the rated voltage
3. torque: how much N.m you need at the rated voltage, how much N.m you need when it stops running
4. size restriction: dimensions of your mounting space
5. output shaft: it can be customized as per different installation requests, shaft diameter, length, threaded shaft, D shaft, dual flat shaft, single flat shaft, spring shaft, keyway shaft etc.
