4260 Round Bldc Motor Bladeless Fan Motor 5600rpm Low Noise
Price:
Negotiated The Price
MOQ:
200
Delivery Time:
8-10 working days
Brand:
SECORE
Product Description
4235 4250 4260 4266 Round Bldc Motor Bladeless Fan Motor 5600rpm Low Noise Fan Brushless Motor
Features of Micro BLDC Motor BLS-4260:
- PWM speed adjust
- FG output
- Lock detect protection
- Over current protection
- Standby mode
- Internal UVLO and thermal shutdown circuitry
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||
| SPEED RPM |
CURRENT A |
SPEED RPM |
TORQUE gf.cm |
CURRENT A |
TORQUE gf.cm |
CURRENT A |
||
| BLS-4260I | 12 | 5600 | 0.43 | 4782 | 600 | 3 | 3800 | 10 |

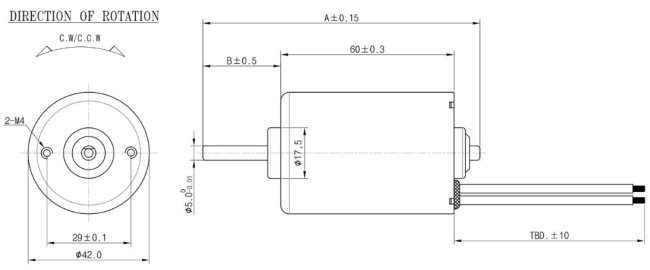

Dimension of the bldc motor:

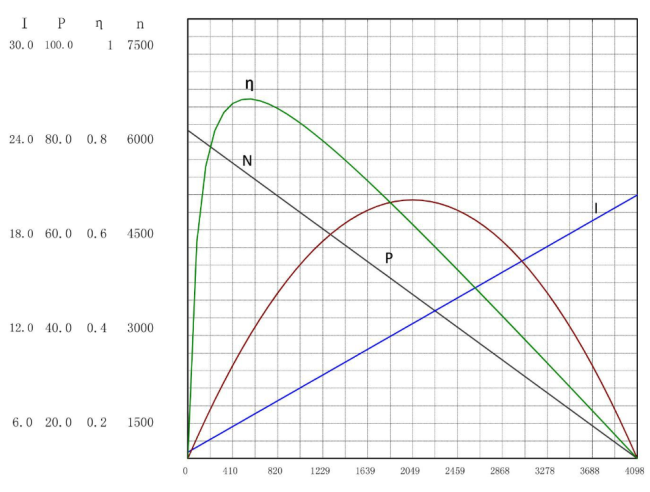

Performance curve:
Questions & Answers
Q: What’s your main motors?
A: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor, Coreless motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.
A: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor, Coreless motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.
Q: Do you accept customization?
A: Yes, in fact, most of our products are customized according to customer needs.
Q: Can your motor be forward and reverse rotation (CW/CCW)?
A: Yes, the exchange electrode motor will rotate in the opposite direction.
Q: Is there a charge for samples?
A: Our samples are generally charged, but our purpose is not to make a profit.
Q: What is the minimum order quantity?
A: There is no limit on the number of samples, the minimum order quantity for bulk goods is 500 units if no stock available, and it can be flexible for some models, approach us for more details.
Q: I don’t know how to choose a suitable motor.
A: Please email and tell us the specific purpose of the motor. It is best if you can caculate the voltage, speed and torque of the motor.
