25mm Miniature DC Gear Motor 12V 24V Ball Bearing Brushless Dc Gearmotor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description
Factory Supply 25mm Miniature DC Gear Motor 12V24V Ball Bearing Brushless Gear DC Motor
Secore bldcmotor 3.7V 6V 12v 14.4V 24v 48v small planetary brushless gear motor 2838-25GB
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Gear length | with gearbox | ||||||||
| SPEED RPM | CURRENT mA | SPEED RPM | TORQUE g.cm | CURRENT mA | Output W | TORQUE g.cm | CURRENT A | mm | Free-load speed | rated speed | rated torque | stall torque | ||
| BL2838-25GB | 12 | 6200 | 90 | 4800 | 20 | 180 | 1.4 | 105 | 0.75 | 29.5 | 12 | 10 | 5 | 10 |
| BL2838-25GB | 24 | 8700 | 70 | 7000 | 20 | 150 | 2.5 | 130 | 0.7 | 29.5 | 17 | 15 | 5 | 10 |

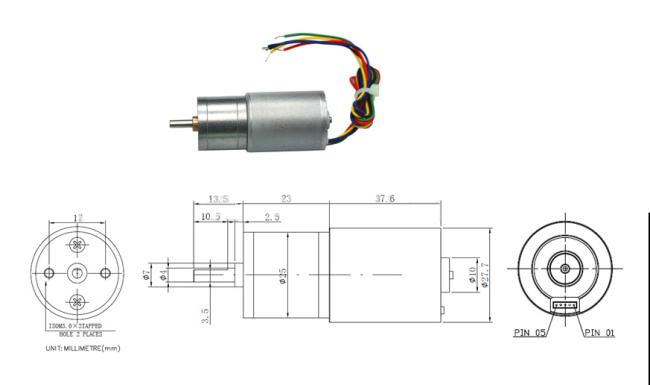

Dimension of the brushless motor:
Customized spares parts
1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc
