Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Customized 24v Low Noise 10kg Medical Device Brushless Spur Gear Motor 3650 60rpm

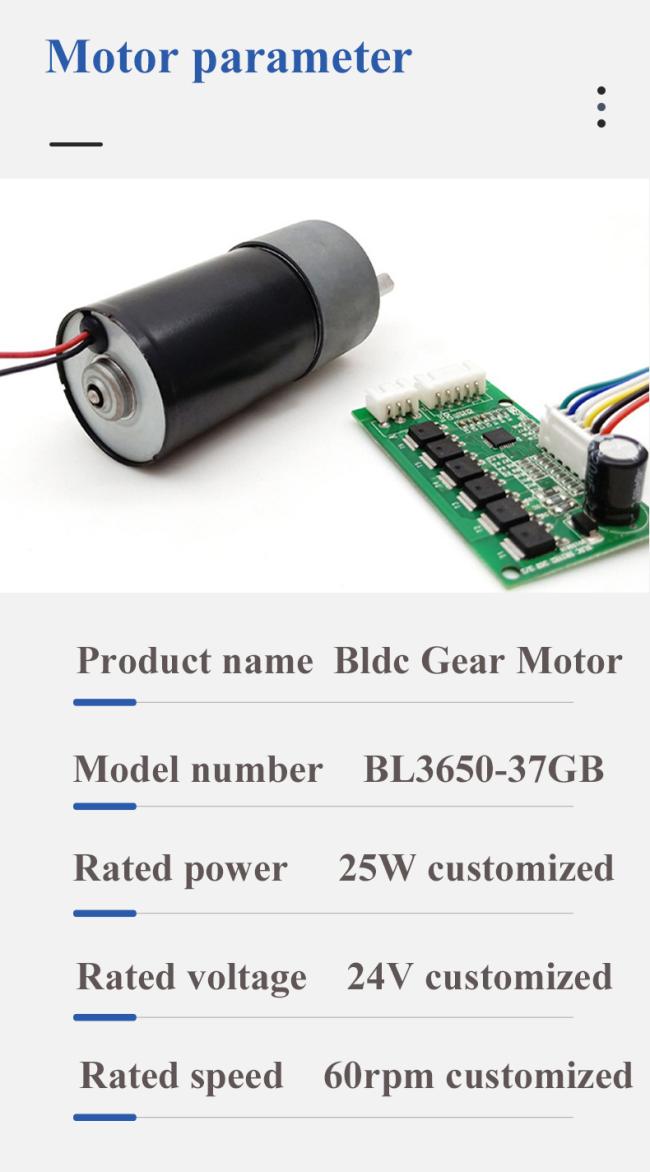

Secore bldc gear motor 3650-37GB
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | with gearbox 1:90 | |||||||
| SPEED RPM | CURRENT mA | SPEED RPM | TORQUE g.cm | CURRENT mA | Output W | TORQUE g.cm | CURRENT A | Free-load speed rpm | rated speed rpm | rated torque kg.cm | ||
| BL3650-37GB | 12 | 6500 | 250 | 5300 | 200 | 1400 | 11 | 1050 | 4 | 70 | 60 | 10 |
| BL3650-37GB | 24 | 8700 | 70 | 7000 | 20 | 150 | 2.5 | 130 | 0.7 | 43 | 35 | 10 |

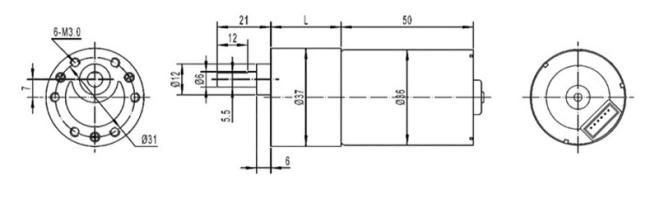

Dimension of the brushless motor:
Typical application for BLDC gear motor:
Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliance : lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliance, etc.
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.
Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
