Four Wheel Toy 24V Gear Motor 33rpm High Torque Spur Gear Deceleration Motor
Four-Wheel Toy 24V Gear Motor 5V Smart Appliance High Torque Driving Motor
Secore gear motor 12v 24v small brush reducing motor 3530-33GB
| MODEL | VOLTAGE | NO LOAD | WITH LOAD | STALL | |||||
| SPEED RPM |
CURRENT max A |
SPEED RPM |
TORQUE Kg.cm |
CURRENT max A |
Output W |
TORQUE min Kg.cm |
CURRENT max A |
||
| DC3530-33GB | 12 | 3000 | 0.023 | 2250 | 0.04 | 0.17 | 0.5 | 0.144 | 0.4 |
| DC3530-33GB | 12 | 4500 | 0.045 | 3600 | 0.046 | 0.211 | 1.7 | 0.207 | 1.06 |
| DC3530-33GB | 12 | 6000 | 0.054 | 4800 | 0.062 | 0.367 | 3.1 | 0.279 | 1.84 |
| DC3530-33GB | 24 | 3000 | 0.02 | 2400 | 0.045 | 0.05 | 1.1 | 0.202 | 0.21 |
| DC3530-33GB | 24 | 4500 | 0.033 | 3600 | 0.05 | 0.114 | 1.9 | 0.225 | 0.48 |
| DC3530-33GB | 24 | 6000 | 0.03 | 4800 | 0.076 | 0.2 | 3.8 | 0.342 | 0.84 |
| Reduction stage | 3 | 4 | 5 | 6 | 7 | |||||
| Reduction ratio | 20K | 50K | 125K | 312.5K | 781K | |||||
| gearbox length L | 17.7 | 19.9 | 22.2 | 24.4 | 26.7 | |||||
| Gearbox efficiency | 73% | 65% | 59% | 53% | 48% | |||||

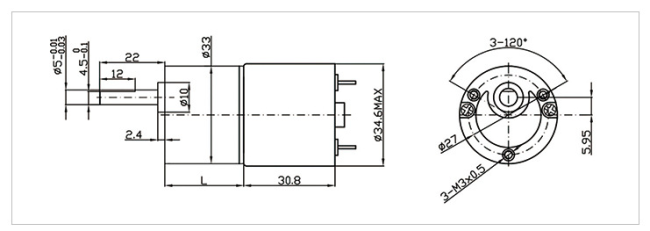

Dimension of the spur gear motor:
BLDC Motor Applications:
With high efficiency and controllability, and long lifespans, brushless motor are widely used in continuously operating equipment. They have long been used in air conditioners, washing machines, and many consumer electronics, also used to drive hard disk drives, and their durability allows the drives to operate reliably over long periods of time, while their power efficiency helps reduce energy in this increasingly important area.; more recently, they are applied in fans, where their high efficiency helps reducing power consumption significantly.
They are also used to drive vacuum machines. In one case, a change in the control program resulted in a huge jump in speed—an example of the highest controllability these motors offer.
