High Torque 12kg 37kg 555 Deceleration Spur Gear Motor 100rpm For Power Tool
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
10-12 working days
Brand:
SECORE
Product Description
High Torque 12kg 37kg 555 Spur Gear Deceleration Motor 100rpm For Power Tool
Secore Brush gear motor 12v 24v 3657-50GB
| Reduction stage | 2 | 3 | 4 | 5 | ||||
| Reduction ratio | 9K | 21K, 25.5K | 50K, 60K, 72K | 118K, 141K, 170K, 205K | ||||
| gearbox length L | 21.9 | 26.4 | 30.9 | 35.4 | ||||
| Gearbox efficiency | 81% | 73% | 65% | 59% | ||||
| MODEL | VOLTAGE | NO LOAD | WITH LOAD | STALL | |||||
| SPEED RPM |
CURRENT max A |
SPEED RPM |
TORQUE Kg.cm |
CURRENT max A |
Output W |
TORQUE min Kg.cm |
CURRENT max A |
||
| DC3657-50GB | 6 | 6000 | 0.858 | 4500 | 0.312 | 2.25 | 13.8 | 1.08 | 10.1 |
| DC3657-50GB | 12 | 3000 | 0.171 | 2400 | 0.126 | 0.561 | 3.2 | 0.56 | 2.39 |
| DC3657-50GB | 12 | 6000 | 0.351 | 4500 | 0.281 | 2.3 | 13.2 | 1.1 | 10.23 |
| DC3657-50GB | 12 | 8500 | 0.638 | 6450 | 0.311 | 2.8 | 20.3 | 1.12 | 11.9 |
| DC3657-50GB | 24 | 3000 | 0.121 | 2400 | 0.198 | 0.336 | 5.1 | 0.89 | 1.43 |
| DC3657-50GB | 24 | 4500 | 0.174 | 3600 | 0.309 | 0.62 | 11.7 | 1.39 | 3.63 |
| DC3657-50GB | 24 | 6000 | 0.271 | 4500 | 0.281 | 0.81 | 13.1 | 1.1 | 5.82 |

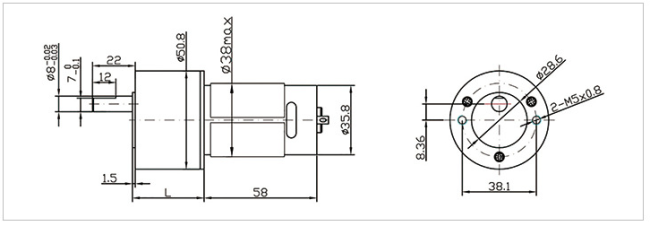

Dimension of the spur gear motor:
Types of Motors / Gear motors
Brushed Motor
Brushless Motor
Coreless Brush Motor
Coreless Brushless Motor
Servo Motor
Stepper Motor
Planetary gear motor
Spur Gear Motor
Worm Gear Motor
