28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-10 working days
Brand:
SECORE
Product Description
28mm Micro Coreless Dc Planetary Gear Motor Precision Metal Gearbox Ironless Motor
Secore Planetary Coreless Gear Motor parameter:
| Model | VOLTAGE | NO LOAD | WITH LOAD | gear ratio 1:___ |
Length L | ||||||
| SPEED RPM |
CURRENT max A |
SPEED RPM |
TORQUE kg.cm mN.m oz.in |
CURRENT max A |
Output W |
||||||
| CL2846-395 | 24 | 2160 | 0.22 | 1512 | 0.4 | 39.2 | 5.555 | 0.32 | 6.2 | 3.7 | 73.3 |
| CL2846-395 | 24 | 1530 | 0.1 | 1071 | 0.56 | 54.88 | 7.777 | 0.32 | 6.2 | 5.2 | 73.3 |
| CL2846-395 | 24 | 580 | 0.23 | 406 | 1.3 | 127.4 | 18.054 | 0.32 | 5.58 | 13.7 | 81.4 |
| CL2846-395 | 24 | 410 | 0.11 | 287 | 1.81 | 177.38 | 25.136 | 0.32 | 5.58 | 19.2 | 81.4 |
| CL2846-395 | 24 | 290 | 0.11 | 203 | 2.55 | 249.9 | 35.413 | 0.32 | 5.58 | 27 | 81.4 |
| CL2846-395 | 24 | 150 | 0.24 | 105 | 4.09 | 400.82 | 56.800 | 0.32 | 4.56 | 50.5 | 89.5 |
| CL2846-395 | 24 | 110 | 0.11 | 77 | 5.75 | 563.5 | 79.853 | 0.32 | 4.56 | 71 | 89.5 |
| CL2846-395 | 24 | 80 | 0.11 | 56 | 8.1 | 793.8 | 112.489 | 0.32 | 4.56 | 100 | 89.5 |
| CL2846-395 | 24 | 60 | 0.11 | 42 | 11.26 | 1103.48 | 156.373 | 0.32 | 4.56 | 139 | 89.5 |
| CL2846-395 | 24 | 40 | 0.25 | 28 | 12.85 | 1259.3 | 178.454 | 0.32 | 3.6 | 187.5 | 100.6 |
| CL2846-395 | 24 | 30 | 0.12 | 21 | 17.75 | 1739.5 | 246.503 | 0.32 | 3.6 | 263 | 100.6 |
| CL2846-395 | 24 | 20 | 0.12 | 14 | 25 | 2450 | 347.188 | 0.32 | 3.6 | 370 | 100.6 |
| CL2846-395 | 24 | 15 | 0.12 | 10 | 35 | 3430 | 486.063 | 0.32 | 3.6 | 520 | 100.6 |
| CL2846-395 | 24 | 10 | 0.12 | 7 | 49 | 4802 | 680.488 | 0.32 | 3.6 | 731 | 100.6 |
| Gear ring material | steel |
| Bearing at output | ball bearings |
| Radial paly of shaft | <0.05mm |
| Thrust play of shaft | <0.2mm |
| Backlash at no load | <2.0 |
| Gear material | Steel/powder alloy |
| Output shaft | θ4.0 θ6.0 θ8.0 custom made |
| New weight | 300g |

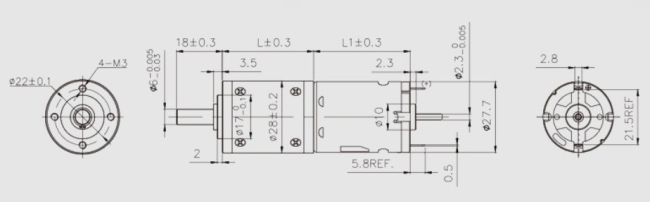

Outline drawing
Strict raw material application
gear, plastic, gear + plastic
Application
Coreless DC motors are ideal for a variety of dynamic applications, including automotive systems, cable pull systems, microscopes and electric screwdrivers, tattoo machines, golf carts and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotics projects such as small positioning and pan/tilt systems. Medical devices such as prosthetics, insulin pumps, X-ray machines and laboratory equipment also benefit from the use of coreless motors. In addition, there are many applications in particularly demanding fields such as aerospace, defense and surveillance.
