45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
Price:
Negotiated The Price
MOQ:
100
Delivery Time:
7-10 working days
Brand:
SECORE
Product Description
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
Secore Planetary ironless Gear Motor parameter:
| Model | VOLTAGE | NO LOAD | WITH LOAD | gear ratio 1:___ |
Length L | ||||||
| SPEED RPM |
CURRENT max A |
SPEED RPM |
TORQUE kg.cm mN.m oz.in |
CURRENT max A |
Output W |
||||||
| CL4567-775 | 24 | 2160 | 0.35 | 1730 | 1.78 | 174.44 | 24.72 | 1.67 | 32 | 3.7 | 100.1 |
| CL4567-775 | 24 | 1530 | 0.22 | 1280 | 2.4 | 235.2 | 33.330 | 1.67 | 32 | 5 | 100.1 |
| CL4567-775 | 24 | 580 | 0.35 | 467 | 5.75 | 563.5 | 79.853 | 1.67 | 28 | 13.7 | 108.2 |
| CL4567-775 | 24 | 410 | 0.22 | 346 | 7.77 | 761.46 | 107.906 | 1.67 | 28 | 18.5 | 108.2 |
| CL4567-775 | 24 | 290 | 0.22 | 256 | 10.5 | 1029 | 145.819 | 1.67 | 28 | 25 | 108.2 |
| CL4567-775 | 24 | 150 | 0.35 | 127 | 18.18 | 1781.64 | 252.475 | 1.67 | 24 | 50.5 | 116.3 |
| CL4567-775 | 24 | 110 | 0.22 | 93 | 24.66 | 2416.68 | 342.466 | 1.67 | 24 | 68.5 | 116.3 |
| CL4567-775 | 24 | 80 | 0.22 | 69 | 33.3 | 3263.4 | 462.454 | 1.67 | 24 | 92.5 | 116.3 |
| CL4567-775 | 24 | 60 | 0.22 | 51 | 45 | 4410 | 624.938 | 1.67 | 24 | 125 | 116.3 |
| CL4567-775 | 24 | 40 | 0.35 | 34 | 56.25 | 5512.5 | 781.172 | 1.67 | 20 | 187.5 | 127.4 |
| CL4567-775 | 24 | 30 | 0.22 | 25 | 76.2 | 7467.6 | 1058.228 | 1.67 | 20 | 254 | 127.4 |
| CL4567-775 | 24 | 23 | 0.22 | 19 | 102.6 | 10054.8 | 1424.858 | 1.67 | 20 | 342 | 127.4 |
| CL4567-775 | 24 | 17 | 0.22 | 14 | 138.75 | 13597.5 | 1926.891 | 1.67 | 20 | 462.5 | 127.4 |
| CL4567-775 | 24 | 12 | 0.22 | 10 | 187.5 | 18375 | 2603.906 | 1.67 | 20 | 625 | 127.4 |
| Gear ring material | steel |
| Bearing at output | ball bearings |
| Radial paly of shaft | <0.05mm |
| Thrust play of shaft | <0.2mm |
| Backlash at no load | <2.0 |
| Gear material | Steel/powder alloy |
| Output shaft | θ4.0 θ6.0 θ8.0 custom made |
| New weight | NA |

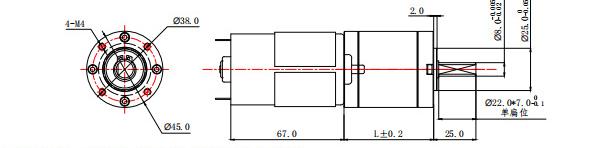

Outline drawing

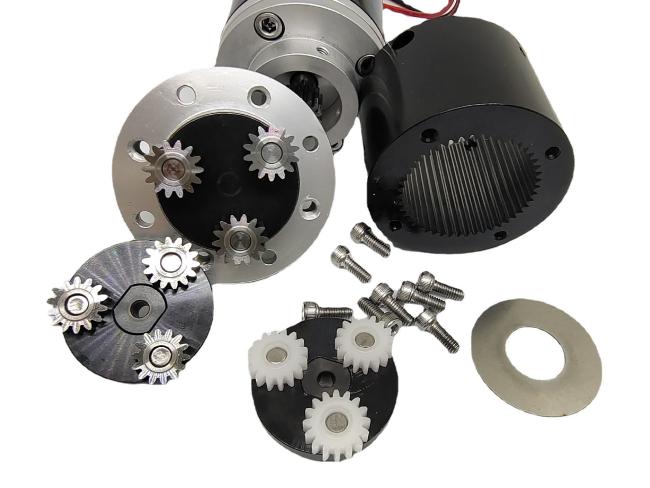

Strict raw material application
