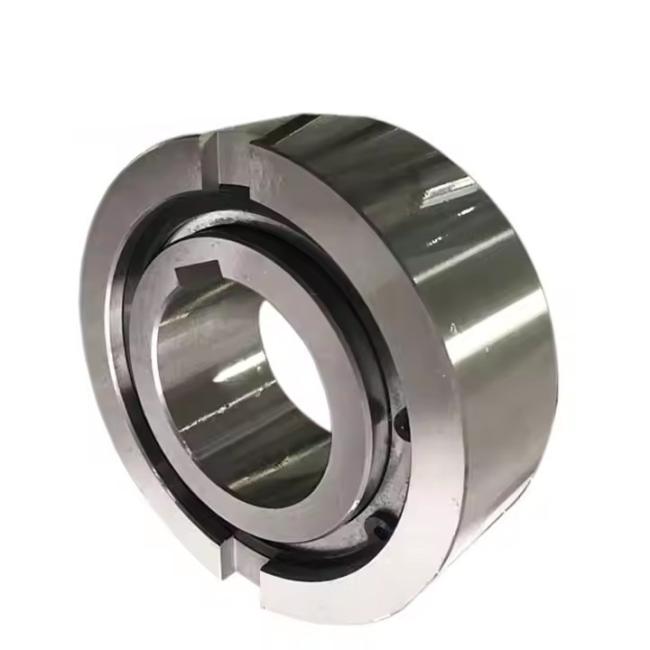

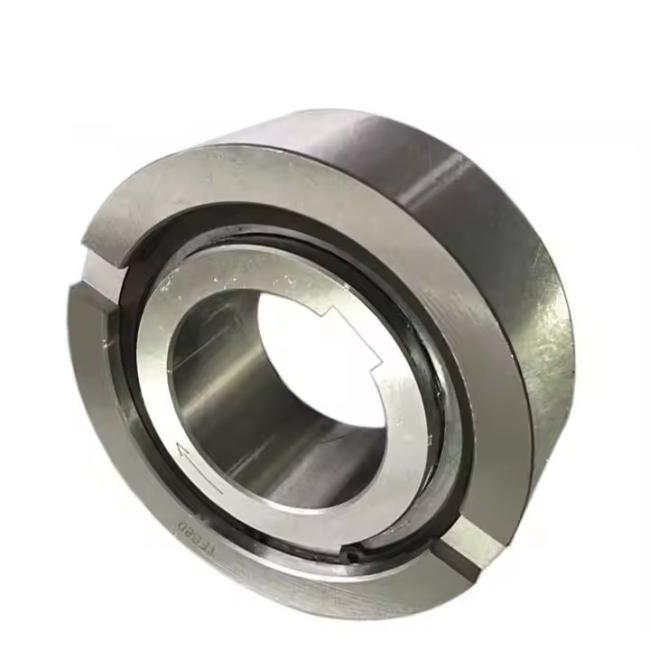

TFS40 Backstop Clutch, Cam Clutch One Way Bearings TFS 40

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 20-45DAYS

Brand: SFT

Product Description

TFS40 Backstop Clutch, Cam Clutch One Way Bearings TFS 40

Product Description

Features of TFS one way bearings :

The outer race of the TFS Series Cam Clutch is designed for press fit installation to the housing. Correct interference dimensions of the outer race must be maintained to obtain maximum clutch performance.

Internal Housing Diameter Tolerance: H7

Shaft Tolerance: h7

SPECIFICATIONS
Product name	one way bearings
Model	TFS40
Material	Chrome steel GCr15
Inner diameter	40mm
Outer diameter	90mm
Torque capacity	607Nm
Weight	1050g
Thickness	33mm
Application	Textile machine, fans, ventilators, printing machine
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union,Paypal
Delivery time	2-4 days for the sample, 7 days for big order

Catalogue of tfs one way cam clutch for your choice

Model	Torque	Max.Overrunning		Drag	Bore Size	Keyway	A	B	C	D	E	F	G	H	Weight
	Capacity	Inner Race	Outer Race	Torque	Bore Size	Keyway	A	B	C	D	E	F	G		Weight
	(N·m)	(r/min)	(r/min)	(N·m)	(H7)										(g)
TFS12	18	4500	2300	0.04	12	4x1.8	13	35	30	18	0.6	0.3	4	1.4	68
TFS15	28	3500	1800	0.06	15	5x1.2	18	42	36	22	0.8	0.3	5	1.8	120
TFS17	50	3200	1600	0.11	17	5x1.2	19	47	38	22	1.2	0.8	5	2.3	150
TFS20	84	2500	1300	0.18	20	6x1.6	21	52	45	27	1.2	0.8	6	2.3	220
TFS25	128	2000	1000	0.19	25	8x2.0	24	62	52	35	1.2	0.8	8	2.8	360
TFS30	200	1600	800	0.21	30	8x2.0	27	72	62	40	1.8	1	10	2.5	530
TFS35	475	1400	700	0.42	35	10x2.4	31	80	70	48	1.8	1	12	3.5	790
TFS40	607	1300	650	0.46	40	12x2.2	33	90	78	54.5	1.8	1	12	4.1	1050
TFS45	756	1100	550	0.56	45	14x2.1	36	100	85.3	59	1.8	1	14	4.6	1370
TFS50	1124	1000	500	0.6	50	14x2.1	40	110	92	65	1.8	1	14	5.6	1900
TFS60	1975	840	420	0.87	60	18x2.3	46	130	110	84	2.6	1.5	18	5.5	3110
TFS70	2514	750	380	0.91	70	20x2.7	51	150	125	91	2.6	1.5	20	6.9	4390
TFS80	3924	670	340	1.22	80	22x3.1	58	170	140	100	2.6	1.5	20	7.5	6440
